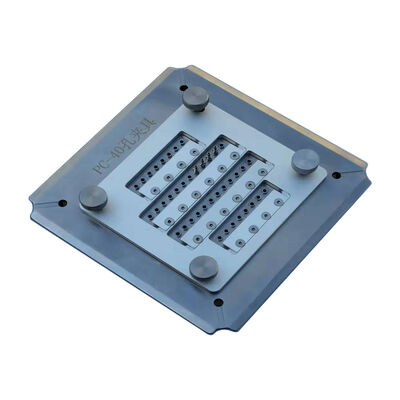

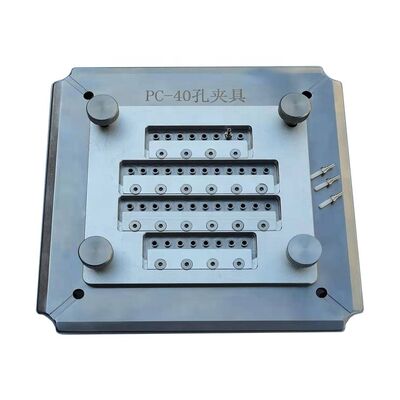

40 Port Fiber Optic Polishing Jig dengan stainless steel S136 untuk Insertion Loss ≤0.20dB
Detail Produk
| Bahan: | Stainless Steel S136 | Ukuran: | 174mmx174mmx7.2mm |
|---|---|---|---|
| Berat bersih: | 1.5KG | Kerugian Penyisipan: | ≤0.20db |
| Kembali Kerugian: | ≥55dB | Jumlah serat: | 40 |
| Diameter Ferrule Serat: | 2.5mm | Kerugian Penyisipan SM/UPC: | ≤0.20db |
| Kerugian Penyisipan SM/APC: | ≤0.20db | Kerugian Penyisipan MM/UPC: | ≤0.50db |
| Kerugian Pengembalian SM/UPC: | ≥55dB | Kerugian Pengembalian SM/APC: | ≥60dB |
| Kerugian Pengembalian MM/UPC: | ≥30dB | Radius kelengkungan: | 5-25mm (UPC), 5-12mm (APC) |
| Perimbangan Puncak: | 0-50μm | ||
| Menyoroti |
40 Perlengkapan Pemolesan Pelabuhan,Jig Pemoles Serat Optik S136 Baja Tahan Karat,Kerugian Penyisipan ≤0.20dB Perlengkapan Poles Ferrule Serat |
||
Deskripsi Produk

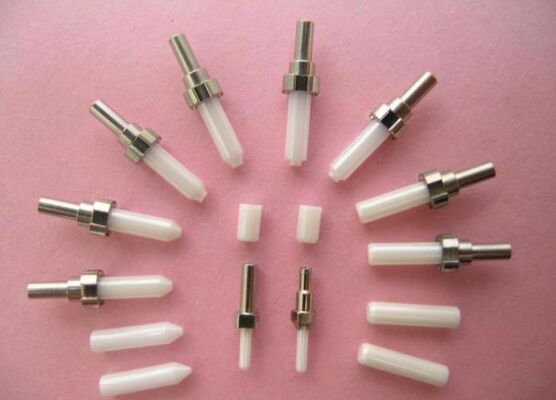

- Dirancang untuk FC, SC, ST, LC/PC 2.5mm Fiber Optic Connector Ferrule
- Mudah untuk mengganti jigs dengan operasi yang sederhana dan fleksibel
- Efisiensi tinggi - mengkilap hingga 40 ferrule konektor dalam satu siklus
- Hasil lulus pertama untuk kualitas permukaan akhir mencapai 98% ∼100%
- Struktur IPC dengan kompresi independen untuk setiap konektor
- Kerugian pengembalian UPC ≥55dB, Kerugian penyisipan ≤0,20dB (tipikal)
- Aksesoris yang bisa diganti memperpanjang umur layanan secara signifikan
- Desain khusus tersedia untuk konektor SC, FC, ST sesuai kebutuhan pelanggan
| Model | PC |
|---|---|
| Ukuran | 174mm x 174mm x 7.2mm |
| Berat bersih | 1.5kg |
| Berat kemasan | 1.7kg |
| Bahan-bahan | Baja tahan karat S136 |
| Aplikasi | Pegang Konektor Serat Optik Ferrule dan Polishing |
| Diameter Ferrule Serat | 2.5mm |
| Kerugian Penempatan | ≤ 0,20dB |
| Kembali Kerugian | ≥ 55dB |
| Jumlah Serat | 40 |
| MOQ | 1 buah |
| Jenis konektor | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Kerugian Penempatan | ≤ 0,20dB | ≤ 0,20dB | ≤ 0,50dB |
| Kembali Kerugian | ≥ 55dB | ≥ 60dB | ≥30dB |
| Tidak, tidak. | Parameter | Kriteria UPC | Kriteria APC |
|---|---|---|---|
| 1 | Radius kelengkungan | 5-25mm | 5-12mm |
| 2 | Puncak Offset | 0-50μm | 0-50μm |
| 3 | Tinggi Serat | -100~+50μm | -100~+50μm |
| 4 | Sudut | N/a | 80,00+/-0,50° |
Sorotan Produk
Memoles hingga 40 konektor FC/SC/ST per siklus dengan kehilangan penyisipan ≤0,20dB & kehilangan pengembalian ≥55dB. Baja S136 yang diperkeras memastikan daya tahan & hasil first-pass 98-100%. Tersedia desain yang dapat disesuaikan.
