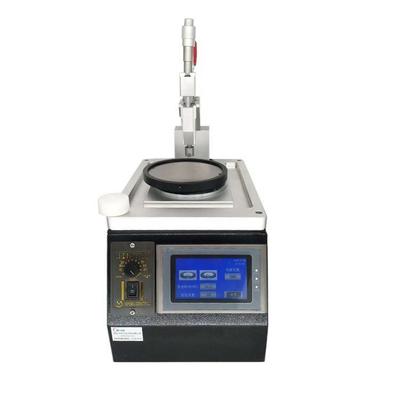

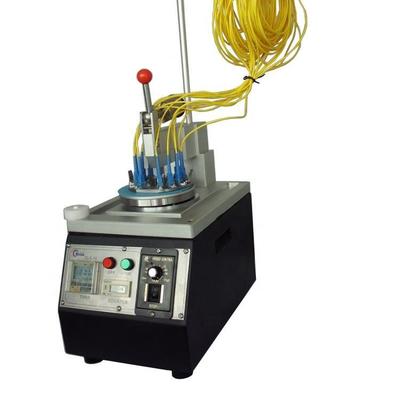

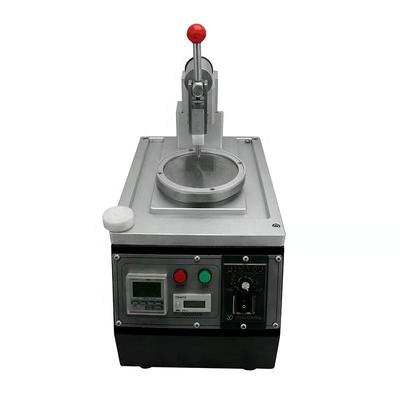

Mesin Polishing Serat Optik Listrik 40W dengan Lembar Polishing 127mm dan Ukuran 340*220*460mm untuk Aplikasi FTTH
Detail Produk
| Catu Daya: | 110~220V AC 50Hz/60Hz | Daya listrik: | 40w |
|---|---|---|---|
| Ukuran: | 340*220*460mm | Berat: | 25kg |
| Ukuran pelat pemoles: | 127mm | Suhu kerja: | 8C°-45C° |
| Kelembaban relatif: | 15%~85% | Pengaturan Waktu: | 99 menit 99 detik (Maks) |
| Status Bekerja: | 0,25g 5~100Hz 10 menit | Status Berhenti: | 0,50g 5~100Hz 10 menit |
| Tipe konektor: | SC /FC /ST/LC/E2000/SMA905/MU | Nomor model: | CLX-10 |
| Berat Bersih: | 25kg | Catu Daya: | 110~220VAC 50Hz/60Hz |
| Menyoroti |
40W Mesin Pulih Serat Optik Daya Listrik,127mm Polishing Plate Fiber Optic Polishing Machine,340*220*460mm Ukuran Fiber Optic Polishing Machine |
||
Deskripsi Produk
| Nomor Model | CLX-10 |
| Ukuran | 340mm × 220mm × 460mm |
| Berat bersih | 25kg |
| Sumber Daya | 110 ~ 220VAC 50Hz/60Hz |
| Listrik | 40W |
| Aplikasi | Pengelasan Serat Optik |
| Suhu Kerja | 8°C~45°C |
| Jenis konektor | SC/FC/ST/LC/E2000/SMA905/MU |
| Kelembaban Relatif | 15% ~ 85% |
| Pengaturan waktu | 99 menit 99 detik (Max) |
| Status Kerja | 0.25g 5~100Hz 10 menit |
| Status pemberhentian | 0.50g 5~100Hz 10 menit |
| Jaminan | Garansi dua tahun |
| MOQ | 1 set |
Sorotan Produk
Kualitas Tinggi Multi Fungsi Mini Buffing Bench Polishing Machine untuk Serat Optik Spesifikasi Teknis Nomor Model CLX-10 Ukuran 340mm × 220mm × 460mm Berat bersih 25kg Sumber Daya 110 ~ 220VAC 50Hz/60Hz Listrik 40W Aplikasi Pengelasan Serat Optik Suhu Kerja 8°C~45°C Jenis konektor SC/FC/ST/LC/E2000...
Alat Poles Serat Optik Silikon Dioksida
Japan NTTAT ADS-127 Silicon Dioxide Final Polishing Film Model:ADS-127 Place of Origin:Japan Quick Detail ● Evenly-sprayed particles on coated surface ● Good intensity & flexility, suitable for polishing on different facets ● Suitable for polishing with dry, water or oil medium ● The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations Description This product is a silica ADS polishing sheet developed by NTT,
Diamond Polishing Film Untuk Memukul-mukul Kabel Serat Optik Patch Cord
Diamond Polishing Film Polishing Paper for Lapping Optical Fiber Patch Cord/Cable Fiber Optic Polishing Paper Features: 1. Uniform dispersion of abrasive particles. 2. Good strength and flexibility. 3. High polishing accuracy. 4. Stable product quality, small difference in batch nails 5. Suitable for polishing with dry, water or oil. Fiber Optic Polishing Film Application: 1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding 2. Grinding
Konektor Kabel Patch Serat Biru
SC UPC Single-mode simplex 3.0mm fiber optic connector kits Model:SX-SM-SC-UPC-3.0mm Place of Origin:ShenZhen,China Specifications Parameter Unit FC,SC,LC ST,MU MT-RJ,MPO SM MM SM MM SM MM PC UPC APC PC PC UPC PC PC UPC PC Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 Return loss dB ≥45 ≥50 ≥60 ≥30 ≥50 ≥50 ≥30 ≥45 ≥50 ≥35 Operating Wavelength nm 1310,1550 1310,1550 1310,1550 Exchangeability dB ≤0.2 ≤0.2 ≤0.2 Vibration dB ≤0.2 ≤0.2 ≤0.2 Operating
Konektor Pigtail Serat Optik 0.9MM, Kontrol Suhu Konektor Optik SM MM LCLC
Optical fiber pigtail optic LC 0.9 connector parts OM4 OM3 SM MM LC 0.9 boot connectorModel:SX-MM-LC-0.9mmPlace of Origin:ShenZhen,ChinaDescriptionProduct NameOptical fiber pigtail optic LC 0.9 Connector PartsModel NumberLC 0.9 fiber optic connectorFiber TypeSM OM1 OM2 OM3 OM4Connector TypeLCInsertion Loss≤0.3dBReturn Loss≥50dBApplicationFTTX,CATV Metro,LANForm of saleOEM/ODMUsePatch cord,PLC splitter,PigtailCustom DesignWelcomeSample Lead Time1 daySample PriceAs per sample
