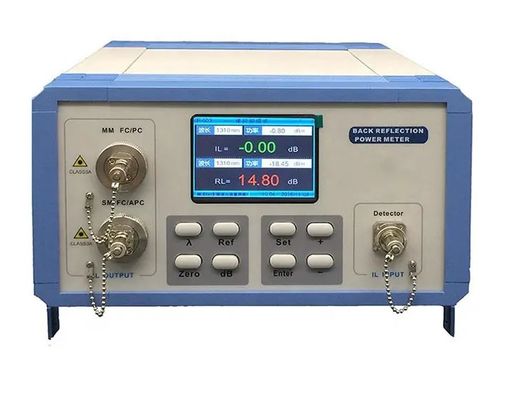

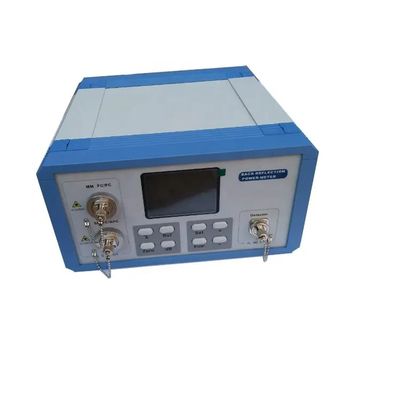

Tester Kerugian Pengembalian Penempatan Presisi Tinggi dengan Jangkauan Pengukuran 14,8 ~ 75dB dan Stasiun Uji Serat Optik Akurasi 0,25dB
Detail Produk
| Rentang pengukuran: | +3 ~ -75dBm | Resolusi: | ±0,3dB |
|---|---|---|---|
| Suhu Operasional: | +10℃ ~ +50℃ | Panjang gelombang sumber cahaya: | MM:850nm/1300nm SM:1310/1550/650,850 1310/14 |
| Berat: | 3kg | Panjang gelombang: | 1310/1550nm |
| Konektor Optik: | FC/APC | Kisaran Kerugian Pengembalian: | 14,8 ~ 75dB |
| Stabilitas laser: | 0,05dB(1 jam@25°C) | Akurasi pengukuran: | 0,25dB |
| Rentang panjang gelombang: | 800~1700nm | Panjang gelombang yang dikalibrasi: | 850/1300/1310/1550nm |
| Detektor foto: | Ingaas | Mode tampilan: | dBm/dB/xW |
| Ukuran: | 360x240x130mm | ||
| Menyoroti |
14.8 ~ 75dB Jangkauan Pengukuran Kerugian Kembali Stasiun Uji Serat Optik,0.25dB Pengukur Keakuratan Penempatan Kembali Kerugian,± 0 |
||
Deskripsi Produk
- Pengujian pigtail dan tali tambalan
- Sambungan optik di ruang peralatan komunikasi dan bingkai distribusi
- Koneksi optik dalam berbagai peralatan dan peralatan
-
Keakuratan pengukuran tinggi
- Synchronously auto-setting wavelength
- Multiple mode kerja
- Operasi yang ramah pengguna
- Desain ergonomis
- Konektor optik universal dengan pembersihan mudah
- konektivitas USB
Sorotan Produk
