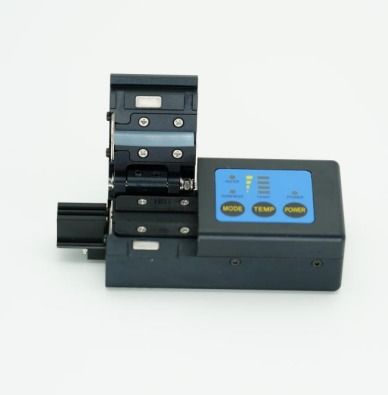

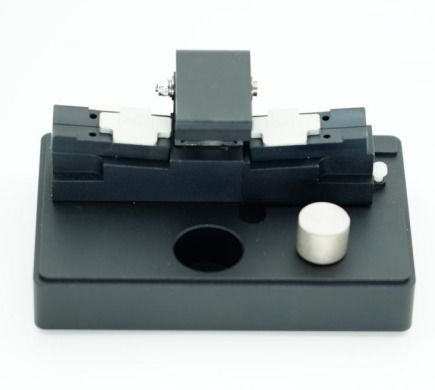

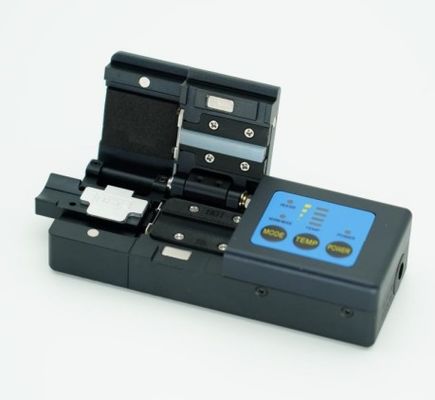

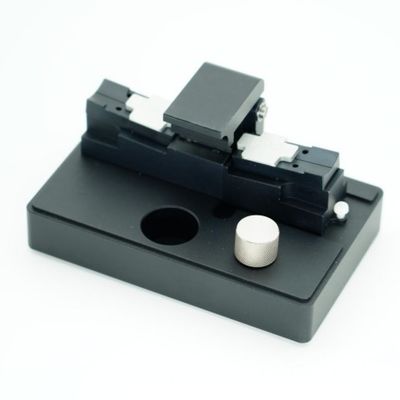

Pengupas Serat Otomatis Jaket Termal untuk Serat Tunggal dan Pita dengan Pengurangan Gaya Pengupasan 80%
Detail Produk
| Ukuran Mesin: | 92,5(L)x 46(D) x 31,5(T) mm | Berat Bersih: | 260g |
|---|---|---|---|
| Daya listrik: | 126w | Kelembaban relatif: | 15%~85% |
| Pengaturan suhu: | 80℃ /100℃/ 120℃ /130℃ | Catu Daya: | Adaptor untuk mengkonversi DC12V |
| Metode Pengupasan: | Panduan sumbu linier + penyemaian panas | Panjang pengupasan: | Hingga 35mm |
| Kapasitas Inti Serat: | 2-12 inti serat pita | Kerugian Penyisipan SM/UPC: | ≤0.20db |
| Kerugian Penyisipan MM/UPC: | ≤0.50db | pengembalian kerugian sm: | ≥55dB |
| kerugian pengembalian mm: | ≥30dB | Radius kelengkungan: | 5-25mm (UPC), 5-12mm (APC) |
| Perimbangan Puncak: | 0-50μm | ||
| Menyoroti |
Pengupas Serat Jaket Termal,Pengupas Otomatis Pengupasan Serat Tunggal,Pengupas Serat dengan Pengurangan Gaya Pengupasan 80% |
||
Deskripsi Produk
- cocok untuk menghilangkan serat pita 2-12 inti, desain kompak dan ringan
- Menggunakan panduan bantalan linier dan metode hot stripping untuk mencegah kerusakan serat
- Pembuangan lapisan pelapis yang efisien dengan hasil berkualitas tinggi
- Mampu melakukan fungsi strip dan window stripping
- Blade tahan lama, mudah diganti
- 80% pengurangan kekuatan stripping dibandingkan dengan model sebelumnya
