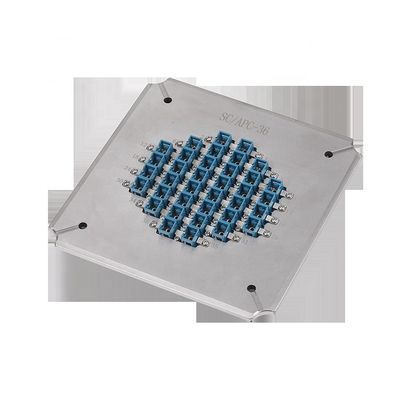

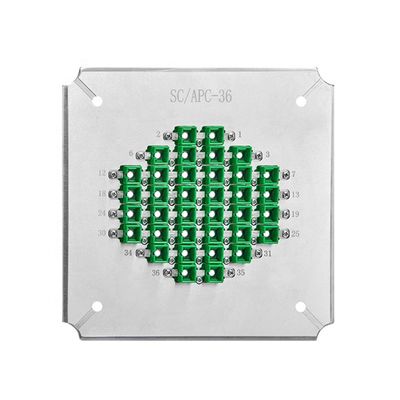

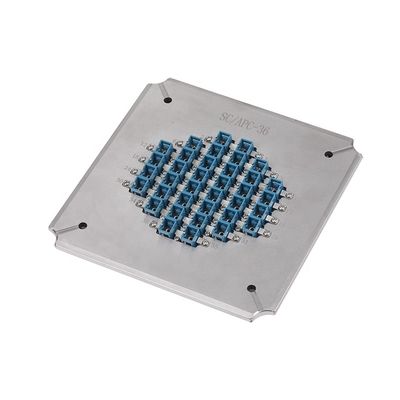

36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB
Detail Produk
| Bahan: | Baja tahan karat yang dikeraskan 2316 | Tipe konektor: | Konektor SC APC |
|---|---|---|---|
| Ukuran: | 174*174*26mm | Diameter ferrule: | 2.50mm |
| Berat bersih: | 1,5 kg | Berat Kotor: | 2.0 KG |
| Jumlah serat: | 36 Posisi | Kehilangan penyisipan: | ≤0.20db |
| Kehilangan kembali: | ≥60dB (APC) | Wajah akhir: | Apc |
| Kapasitas: | 36 Posisi | Radius kelengkungan: | 5-12mm |
| Perimbangan Puncak: | 0-50μm | Tinggi serat: | -100~+50μm |
| Sudut: | 8,00+/-0,50° | ||
| Menyoroti |
36 Positions Fiber Optic Polishing Jig,Hardened Stainless Steel S2316 Polishing Fixture,APC Return Loss ≥60dB Fiber Polishing Fixture |
||
Deskripsi Produk
- Dirancang khusus untuk konektor SC/APC
- Gampang mengubah jig dengan operasi sederhana dan fleksibel
- Efisiensi tinggi - mengkilap hingga 36 konektor per siklus dengan 98%-100% hasil lulus pertama

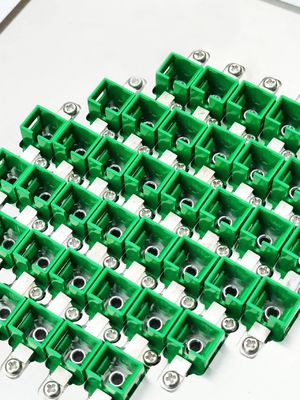

- struktur IPC dengan kompresi independen untuk setiap konektor
- APC kehilangan kembali ≥60dB, kehilangan sisipan ≤0.20dB (biasanya)
- Aksesoris yang dapat diganti untuk masa pakai yang diperpanjang
