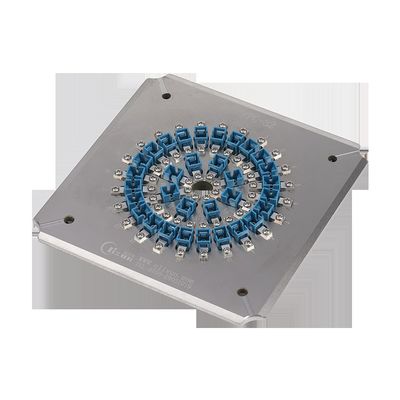

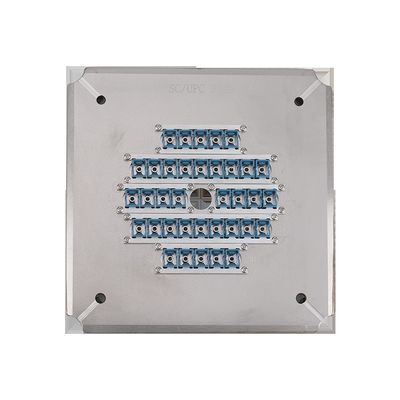

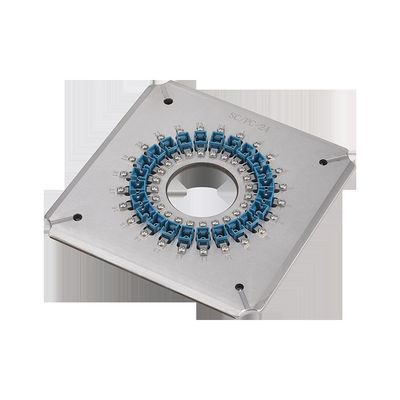

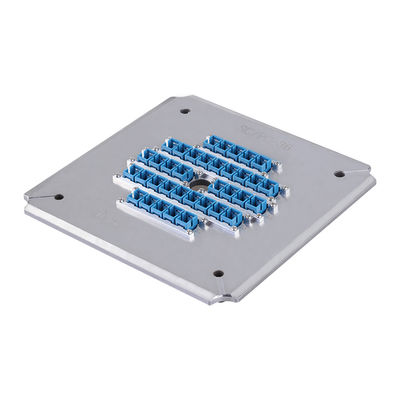

174*174*26mm Fiber Optic Polishing Fixture with 1.5 kgs Weight and Insertion Loss ≤0.20dB for SC UPC Connectors
Detail Produk
| Jenis: | Jig Pemoles Serat Optik | Bahan: | Baja tahan karat yang dikeraskan 2316 |
|---|---|---|---|
| Tipe konektor: | Konektor SC UPC | Ukuran: | 174*174*26mm |
| Diameter ferrule: | 2.50mm | Berat bersih: | 1,5 kg |
| Berat Kotor: | 2.0 KG | Jumlah serat: | 36 Posisi |
| Kehilangan penyisipan: | ≤0.20db | Kehilangan kembali: | ≥60dB (APC) |
| Wajah akhir: | UPC | Kapasitas: | 36 Posisi |
| Radius kelengkungan: | 5-25mm (UPC), 5-12mm (APC) | Perimbangan Puncak: | 0-50μm |
| Tinggi serat: | -100~+50μm | ||
| Menyoroti |
174*174*26mm Fiber Optic Polishing Fixture,1.5 kgs Polishing Jig,Insertion Loss ≤0.20dB Fiber Polishing Jig |
||
Deskripsi Produk
- Dirancang khusus untuk konektor SC/PC
- Gampang mengubah jig dengan operasi sederhana dan fleksibel
- Efisiensi tinggi - mengkilap hingga 36 konektor per siklus dengan hasil pertama 98-100%
- struktur IPC dengan kompresi independen untuk setiap konektor
- kinerja yang luar biasa: kerugian pengembalian APC ≥60dB, kerugian pengembalian UPC ≥55dB, kerugian penyisipan ≤0.20 dB
- Aksesoris yang dapat diganti secara signifikan memperpanjang umur layanan Dibangun dari baja tahan karat S136 untuk daya tahan
