High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors

1
MOQ
$199.12-218.45
harga
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Berat bersih: 0,5kg
Bahan: mengeraskan baja tahan karat
Ukuran: 110*5mm
Jumlah serat: 12
Tingkat kelulusan 3D: ≥98%
Kehilangan penyisipan: ≤0.20db
Kehilangan kembali: ≥55dB (PC) ≥60dB (APC)
Tipe konektor: SC,FC,LC,ST,MU,E2000(PC/APC)
Jenis mesin pemoles: Mesin Poles Tekanan Tengah
Jumlah inti serat: 12
Struktur IPC: Kompresi independen dari setiap konektor
Tingkat kelulusan interferensi: ≥98% (100% Khas, menurut IEC)
Kualitas Permukaan: Stabilitas tinggi dan kualitas permukaan yang baik
Jenis baja: baja keras S2316
Hasil Lulus Pertama: 100%
Menyoroti:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Fixture

,

3D Pass Rate ≥98% ST UPC Polishing Fixture
Informasi dasar
Tempat asal: Guangdong, Cina
Nama merek: chuanglixun
Nomor model: ST/PC
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

The fiber polishing fixture features an IPC structure with independent compression for each connector. With an interference pass rate ≥98% (typically 100% according to IEC standards), this fixture delivers high stability and excellent surface quality.

Constructed from high-quality heat-treated steel, the hardened S2316 steel ensures long service life. The fixture is compatible with SC, FC, ST, LC, MPO, E2000, FA connectors and can be customized to meet specific customer requirements.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders reduce polishing costs
  • Polished ferrule dimensions comply with IEC standards
  • 100% first-pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty Period 24 months

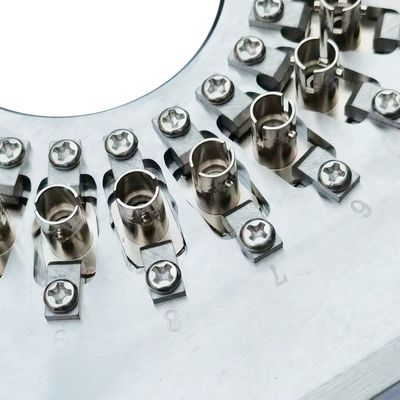

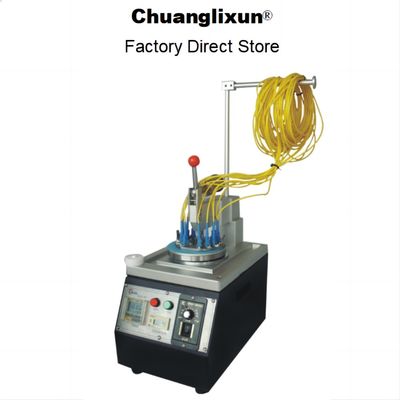

Product Images
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 0 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 1 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 2

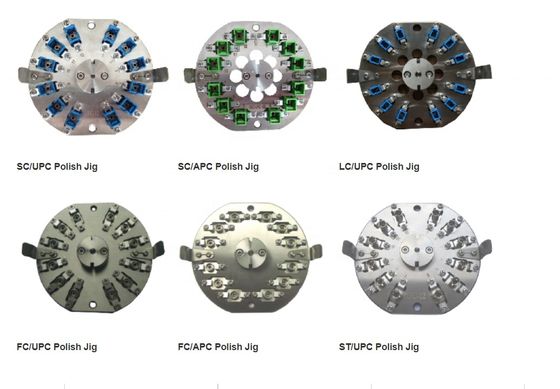

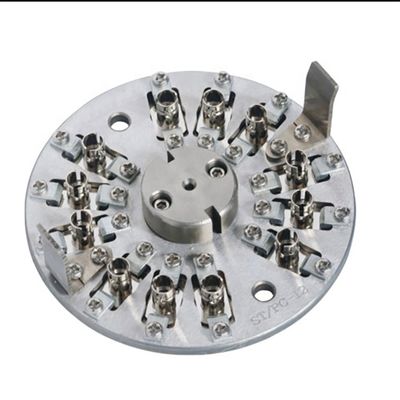

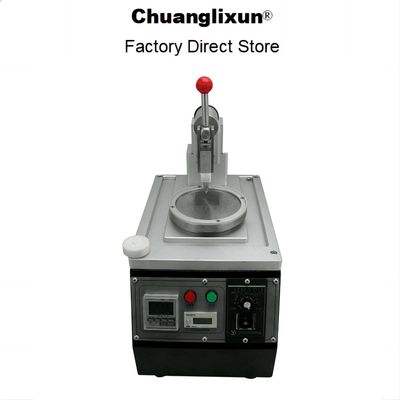

Available Models
High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 3 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 4 High Efficiency 12 Port ST UPC Polishing Fixture with 110*5mm Size and 3D Pass Rate ≥98% for Fiber Optic Connectors 5
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Delivery time may vary based on order quantity.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
