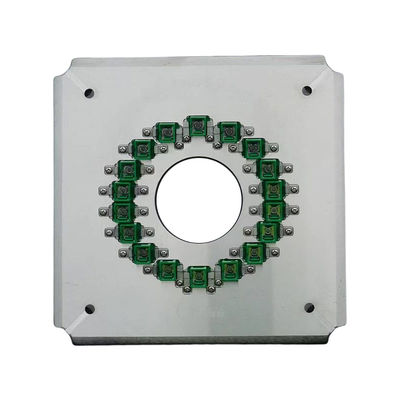

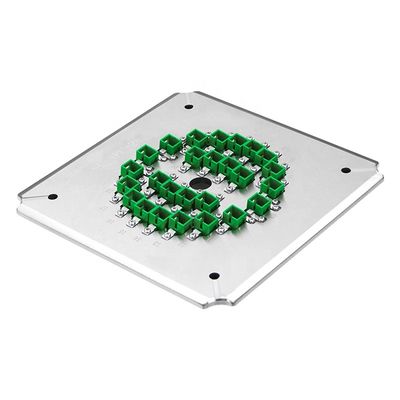

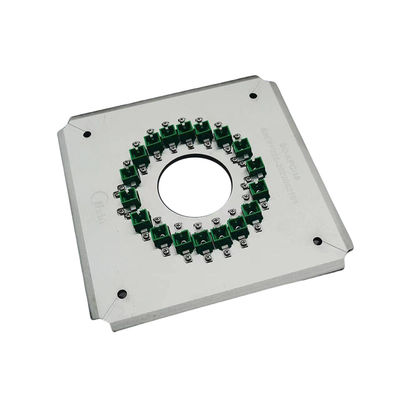

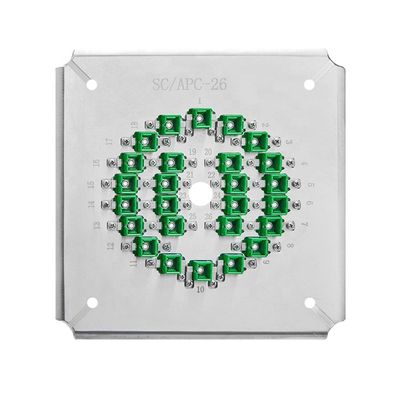

26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use
Detail Produk
| Jenis: | Mesin Produksi Serat Optik | Model: | SC/APC-26 |
|---|---|---|---|
| Bahan: | Stainless Steel S136 | Ukuran: | 174*174*26mm |
| Berat: | 1.3kg | Kehilangan penyisipan: | ≤0.20db |
| Kehilangan kembali: | ≥60dB (APC) | Tipe konektor: | SC APC |
| Wajah akhir: | Apc | Diameter ferrule: | 2.5mm |
| Kapasitas: | 26 posisi | Radius kelengkungan: | 5-12mm |
| Perimbangan Puncak: | 0-50μm | Tinggi serat: | -100~+50μm |
| Sudut: | 8,00+/-0,50° | ||
| Menyoroti |
26 Core Polishing Fixture,APC Return Loss ≥60dB Polishing Jig,Insertion Loss ≤0.20dB Fiber Optic Polishing Fixture |
||
Deskripsi Produk
- Dirancang khusus untuk konektor SC/APC
- Sistem jig cepat untuk operasi fleksibel

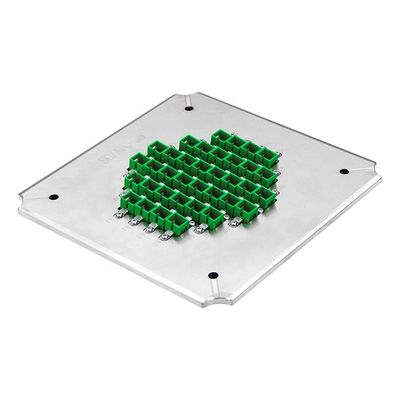

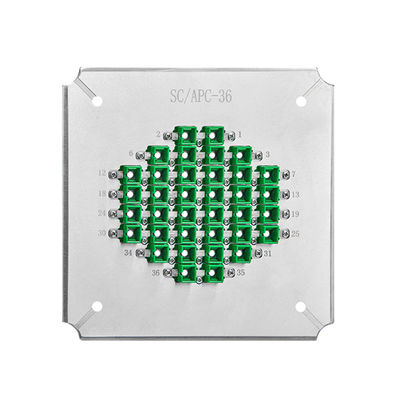

- Pelapis efisiensi tinggi dari 18, 26, atau 36 konektor per siklus
- struktur IPC dengan kompresi konektor independen
- kinerja yang luar biasa: kerugian pengembalian APC ≥60dB, kerugian pengembalian UPC ≥55dB, kerugian penyisipan ≤0.20 dB
- Aksesoris yang bisa diganti memperpanjang umur layanan
- Konstruksi baja tahan panas S136 premium
Sorotan Produk
