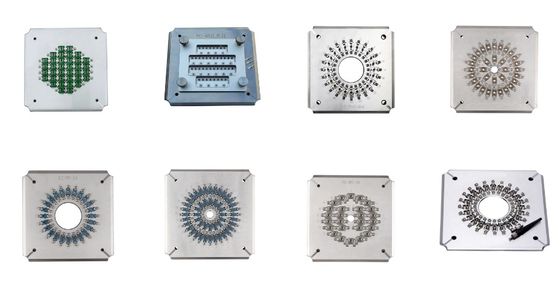

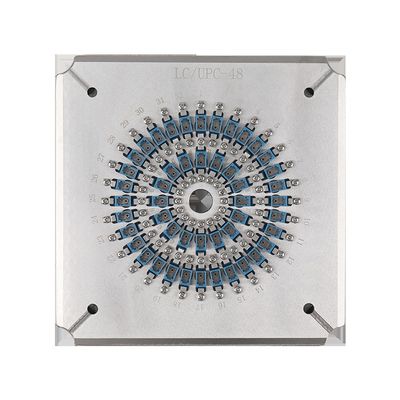

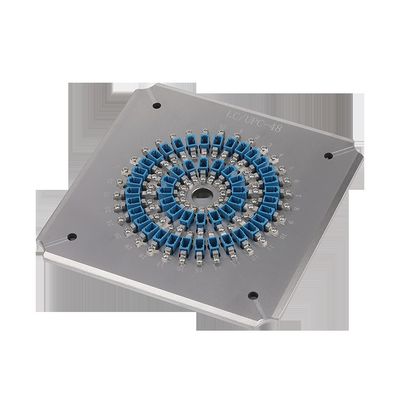

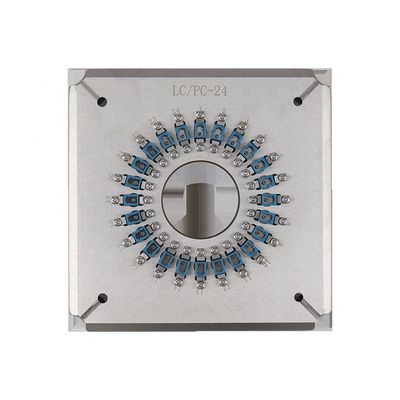

Fiber Optic Polishing Jig for LC UPC Connector with First Pass Yield 98-100% UPC Return Loss ≥55dB and Insertion Loss ≤0.20dB
Detail Produk
| Tipe konektor: | LC/UPC | Bahan: | Stainless Steel S136 |
|---|---|---|---|
| Ukuran: | 174*174*26mm | Kapasitas maksimal: | 40 posisi untuk konektor LC PC |
| Berat bersih: | 1,3 kg | Berat Kotor: | 2kg |
| Diameter ferrule: | 1.25mm | Kehilangan penyisipan: | ≤0.20db |
| Kehilangan kembali: | ≥55dB (UPC) | Tipe Wajah Akhir: | UPC |
| Radius kelengkungan: | 5-25mm | Perimbangan Puncak: | 0-50μm |
| Tinggi serat: | -100~+50μm | Sudut: | 8.00+/-0.50° (APC) |
| Hasil Lulus Pertama: | 98%～100% | ||
| Menyoroti |
First Pass Yield 98-100% Polishing Fixture,UPC Return Loss ≥55dB Fiber Optic Polishing Jig,Insertion Loss ≤0.20dB Optical Polishing Fixture |
||
Deskripsi Produk
- Dirancang khusus untuk konektor LC UPC
- Gampang mengubah jig dengan operasi sederhana dan fleksibel
- Efisiensi tinggi: dipoles 24, 40, atau 48 konektor per siklus
- 98%-100% hasil pertama untuk kualitas permukaan akhir
- struktur IPC dengan kompresi independen untuk setiap konektor
- UPC kehilangan kembali & acirc;‰& yen;55dB, kehilangan sisipan & acirc;‰& current;0.20dB (biasanya)
- Aksesoris yang bisa diganti memperpanjang umur layanan
