LC PC Single Mode Fiber Connectors Kredibilitas Tinggi Konektor Serat Optik Simplex
Detail Produk
| Jenis: | Konektor Serat Optik | Jenis Konektor: | LC/UPC, PC |
|---|---|---|---|
| Aplikasi: | Jaringan FTTH FTTB FTTX | Warna: | bule |
| Penyambung: | LC | Sertifikasi: | CE RoHS SGS |
| Menyoroti |
Konektor Serat Mode Tunggal LC PC,Konektor Serat Mode Tunggal Sederhana,Konektor Serat Optik Simpleks Kredibilitas Tinggi |
||
Deskripsi Produk

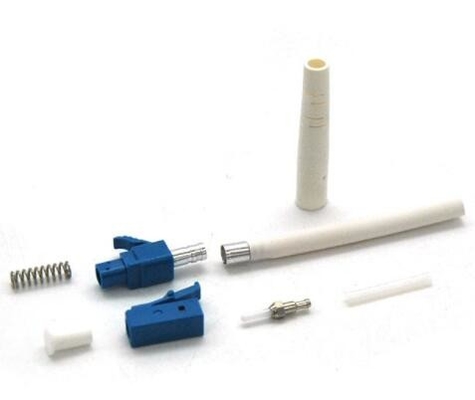

LC/PC Singlemode Simplex Fiber Optic Connector dengan boot 0.9/2.0/3.0mm
Fitur
1. Ferrule keramik zirkonium dioksida berkualitas tinggi.
2. Teknologi dan fasilitas produksi yang matang, pertukaran yang stabil dan pengulangan.
3. Panjang, diameter luar, permukaan ujung ferrule, dan adaptor dapat disesuaikan.
4. Kerugian penyisipan rendah, kerugian pengembalian tinggi
5. Koneksi padat tinggi, mudah dioperasikan
6. Kredibilitas dan stabilitas tinggi
7. Baik dalam pengulangan dan pertukaran
8. Tes 100% sebelum pengiriman
spesifikasi
|
Parameter |
Satuan |
FC, SC, LC |
ST,MU |
MT-RJ,MPO |
|||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
||||||
|
komputer |
UPC |
APC |
komputer |
komputer |
UPC |
komputer |
komputer |
UPC |
komputer |
||
|
Kerugian penyisipan |
dB |
0.3 |
0.2 |
0.3 |
0.2 |
0.2 |
0.2 |
0.2 |
0.3 |
0.2 |
0.2 |
|
Mengembalikan kerugian |
dB |
45 |
50 |
60 |
30 |
50 |
50 |
30 |
45 |
50 |
35 |
|
Panjang Gelombang Operasi |
nm |
1310,1550 |
1310,1550 |
1310,1550 |
|||||||
|
Dapat ditukar |
dB |
0.2 |
0.2 |
0.2 |
|||||||
|
Getaran |
dB |
0.2 |
0.2 |
0.2 |
|||||||
|
Suhu Operasional |
℃. |
-40～+75 |
-40～+75 |
-40～+75 |
|||||||
|
Suhu penyimpanan |
℃. |
-40～+85 |
-45～+85 |
-45～+85 |
|||||||
|
Diameter kabel: |
mm |
3.0,φ2.0,φ0.9 |
3.0,φ2.0,φ0.9 |
3.0,φ2.0,φ0.9 |
|||||||
Langkah Pemasangan Konektor
Aplikasi
Sistem Telekomunikasi
Akses Serat Optik
LAN
Transmisi data serat
Jaringan CATV
Sorotan Produk
LC/PC Singlemode Simplex Fiber Optic Connector dengan boot 0.9/2.0/3.0mm Fitur 1. Ferrule keramik zirkonium dioksida berkualitas tinggi. 2. Teknologi dan fasilitas produksi yang matang, pertukaran yang stabil dan pengulangan. 3. Panjang, diameter luar, permukaan ujung ferrule, dan adaptor dapat ...
