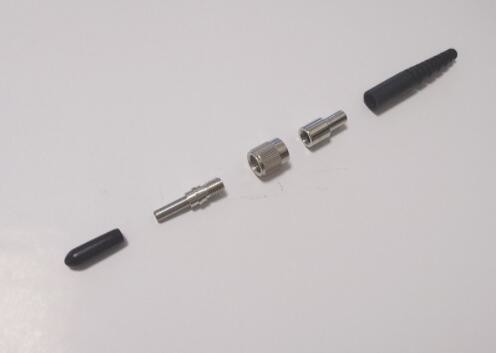

Konektor Kabel Serat Optik SMA905 PC UPC APC Polish Metal Ferrule
Detail Produk
| Nama Produk: | Konektor Fiber Optik | Model: | SMA 905 |
|---|---|---|---|
| Sertifikasi: | CE RoHS SGS | Aplikasi: | Militer, medis |
| Bahan: | logam dan plastik | Wajah akhir Ferrule: | PC, UPC, APC |
| Menyoroti |
Konektor Kabel Serat Optik SMA905,Konektor Kabel Serat Optik PC UPC,Konektor Kabel Serat Ferrule Logam |
||
Deskripsi Produk
Konektor serat optik SMA905 dengan ferrule logam untuk Medis / Laser / Energi
Aplikasi
1. Militer
2. Industri
3. Sistem Laser
4. Spektrometer
5. Medis / Bedah
spesifikasi
| Mode | SM | MM | |
| Polandia | UPC | APC | komputer |
| Kerugian Penyisipan | Khas 0.2dB Maksimum 0.3dB | 0,25dB | |
| Mengembalikan kerugian | 50dB | 65dB | 35dB |
| Dapat dipertukarkan | 0.2dB | ||
| Pengulangan | 0.1dB | ||
| Daya tahan | 0.2dB (1000 kali kawin) | ||
| Kekuatan Tarik | > 10kg | ||
| Suhu | 0.2dB (-40+85 bertahan 100 jam) | ||
| Kelembaban | 0.2dB (+25+65 93 RH100 jam) | ||
Keterangan
Konektor SMA-905, juga dikenal sebagai Konektor FSMA, adalah salah satu sistem interkoneksi serat optik pertama yang diterima secara luas di industri.Saat ini konektor masih banyak digunakan untuk aplikasi militer, industri, dan medis.
Fitur
1. Sesuai dengan TIA / IEC
2. Konektor mur berulir
3. Pengakhiran dan perakitan sederhana
4. Ferrule Stainless Steel atau Zirkonia dengan ukuran ID khusus hingga 1500um
