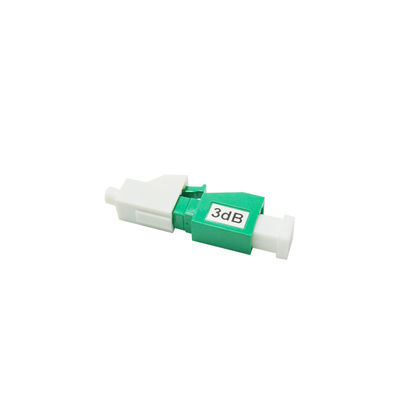

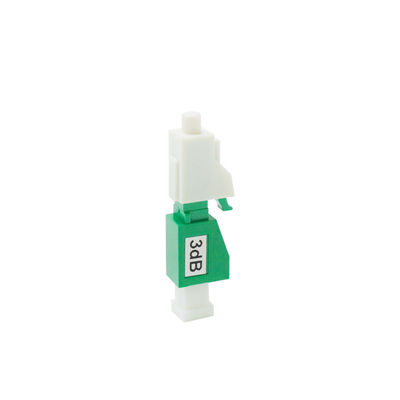

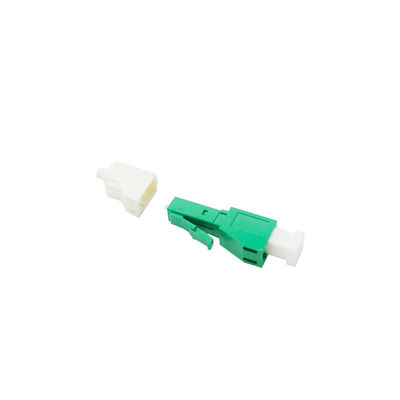

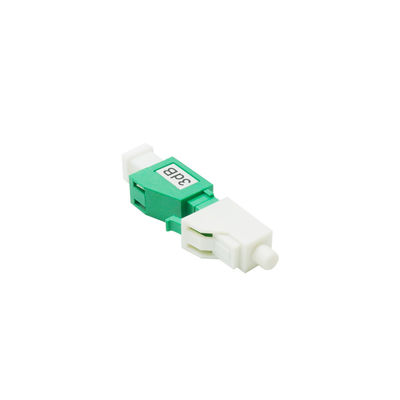

Mode Tunggal 3dB APC LC Serat Optik Attenuator Plug Type 1310/1550nm Panjang Gelombang
Detail Produk
| Nama Produk: | Attenuator Serat Optik LC / APC | Jenis serat: | Mode tunggal |
|---|---|---|---|
| Jenis Konektor: | LC simplex | Pelemahan: | 1-30dB |
| Panjang gelombang: | 1310 / 1550nm | Tipe: | Pria ke Wanita |
| Menyoroti |
APC LC Serat Optik Attenuator,3dB Serat Optik Attenuator,3dB single mode Serat attenuator |
||
Deskripsi Produk
3dB LC Ftetap Tya Pmembawa Tya LC APC Fiber HAIptic SEBUAHpenenuasi
Model: LC/SEBUAHAttenuator Optik PC
Tempat asal:Guangdong,Cina
Keterangan
Serat Optik Attenuator digunakan dalam berbagai macam aplikasi dan dapat memenuhi hampir semua kebutuhan di mana pengurangan daya diperlukan.Kami menyediakan berbagai jenis atenuasi serat, termasuk LC, SC, dan ST, FC, dan atenuator serat optik Variabel.
Fitur
* Attenuator Tetap (Tipe Tetap FC, SC, ST, LC)
* Tipe wanita ke pria ( FC, SC, ST, LC)
* Attenuator In-Line (Tipe Jumper Fused dan Serat)
* Rugi Pengembalian Tinggi (Tipe In-Line dan RL Tinggi)
* Redaman Tepat dan Stabil (Tipe Variabel)
spesifikasi
| Jenis Modus | SM | |
| Atenuasi (dB) | UPC, APC | 1-30dB (tambahan 1dB) |
| Panjang gelombang operasi (nm) | 1310 dan 1550 | |
| Kembali Rugi (dB) | UPC | >50 |
| APC | >60 | |
| Toleransi pada redaman (dB) | 1-10dB | >±0.5 |
| >10dB | >±1.0 | |
| Tergantung Polarisasi (dB) | <0.2 | |
| Suhu Operasi (°C) | -40~+75 | |
Informasi Pemesanan: AT-A-B-C-D-E-F-G
| PADA- | SEBUAH | B | C | D | E | F | G |
| Atenuator | LP=LC/UPC |
M = Pria F = Perempuan |
LP=LC/UPC |
M = Pria F = Perempuan |
SM = Mode Tunggal MM = Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31= 1310nm 55= 1550nm 85= 850nm 30= 1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
Untuk Contoh tentang deskripsi attenuator penuh: SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Serat Optik Attenuator
Sedang mengemas:
Satu potong per tas PE dengan label tongkat (kita bisa menambahkan logo pelanggan di label.)
