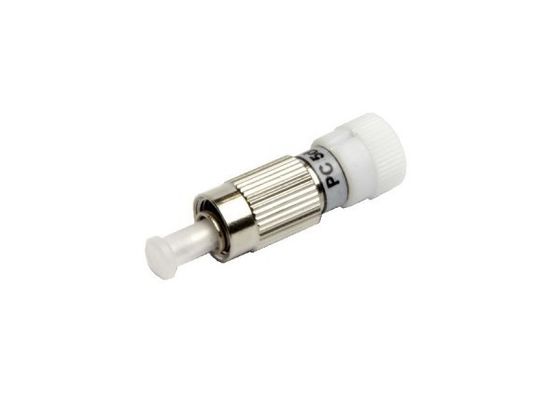

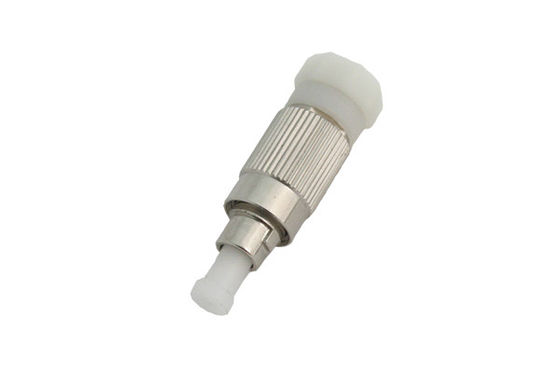

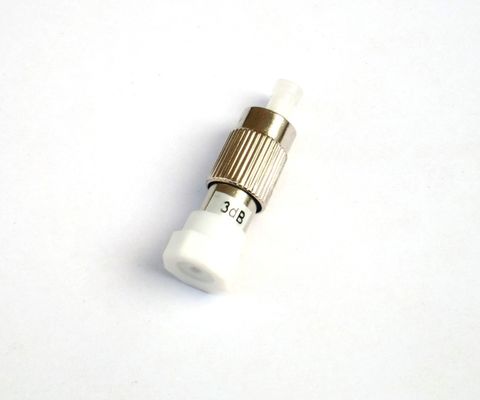

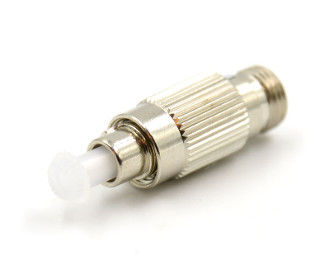

CATV 3db Single Mode Attenuator Pria Ke Wanita UPC FC Attenuator Daya Tinggi
Detail Produk
| Nama Produk: | Fixed type atau Plug type attenuator serat optik | Tipe: | Pria-wanita |
|---|---|---|---|
| Bahan: | Logam, plastik | Daya tahan: | > 1000 kali |
| OEM: | Selamat datang | Panjang gelombang operasi (nm): | 1260 ~ 1620 (SM) |
| Menyoroti |
CATV Single Mode Attenuator,High Power Single Mode Attenuator,Male To Female UPC FC Attenuator |
||
Deskripsi Produk
Fixed Serat Attenuator FC/UPC Singlemode Plug Type 3db Male To Female Serat Optik Attenuator
Model:FAtenuator Optik C/UPC 3dB
Tempat asal:Guangdong,Cina
Keterangan
| 1. Operasi berkelanjutan 1W daya tinggi diuji lebih dari 1000 jam |
| 2. Redaman yang tepat |
| 3. Kehilangan pengembalian UPC >50 dB APC >60 dB |
| 4. Desain pita lebar riak rendah untuk pengoperasian pada 1310 dan 1550 nm |
| 5. Rentang redaman untuk tipe SC, FC, dan LC 1 hingga 13 dB dalam peningkatan 1 dB, 15 dB, dan 20 dB |
Aplikasi
| 1. Sistem serat optik |
| 2. CATV dan sistem telekomunikasi |
| 3. Bantalan penerima untuk perlindungan penerima optik |
| 4. Pemerataan daya optik |
| 5. Meningkatkan jangkauan dinamis untuk peralatan |
Spesifikasi
| Konektor Serat | FC/UPC |
| Jenis Ferrule | Keramik Zirkonia |
| Jenis Kelamin Konektor | Memperbaiki Pria ke Wanita |
| Modus Transfer | mode tunggal |
| redaman | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB |
| Panjang Gelombang Operasi (nm) | 1260~1620(SM) |
| Akurasi redaman | ± 0,5dB |
| Mengembalikan kerugian | 55dB |
| Rugi Ketergantungan Polarisasi | 0.2dB |
| Kelembaban | 95% RH |
| Kisaran Suhu Operasi | -40~85 °C |
| Suhu Penyimpanan Rang | -40~85 °C |
Informasi Pemesanan: AT-A-B-C-D-E-F-G
| PADA- | SEBUAH | B | C | D | E | F | G |
| Atenuator | LP=LC/UPC |
M=Laki-laki
F=Perempuan |
LP=LC/UPC |
M=Laki-laki
F=Perempuan |
SM = SingleMode
MM = Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31=1310nm
55=1550nm
85=850nm
30 = 1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
Untuk Contoh tentang deskripsi attenuator penuh: SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Serat Optik Attenuator
Sedang mengemas:
Satu potong per tas PE dengan label tongkat (kita bisa menambahkan logo pelanggan di label.)
