E2000 Single Core Serat Optik Pigtail Single Mode Konektor APC UPC
Detail Produk
| Nomor model: | Kuncir konektor E2000 | Mode Serat: | Mode tunggal |
|---|---|---|---|
| Aplikasi: | FTTH FTTB FTTX Network | Panjangnya: | 1m 2m 3m atau Disesuaikan |
| Bahan: | PVC / LSZH | Kontrol kualitas: | Tes 100% sebelum pengiriman |
| Menyoroti |
Serat Optik Pigtail Single Mode,E2000 Serat Optik Pigtail,konektor serat pigtail E2000 |
||
Deskripsi Produk

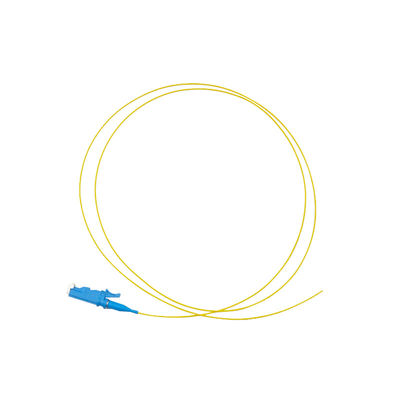

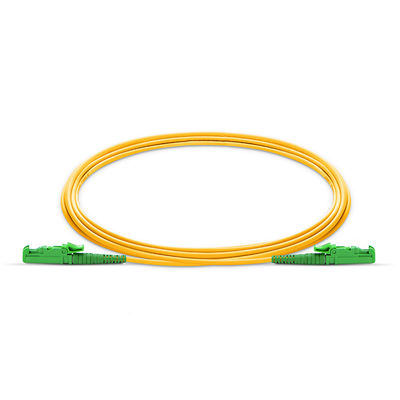

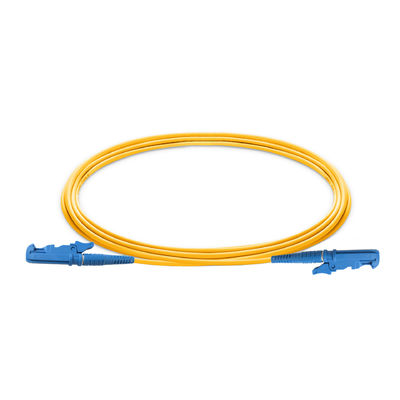

E2000 UPC APC Penyambung Single Mode Single Core Serat Optik Pigtail Atau Patch Cord
Nomor Model:E2000-Kuncir&Tambal Kabel
Tempat Asal: Guangdong, Cina,
Keterangan
1. [E2000 Serat pigtail] memiliki banyak keuntungan, seperti insertion loss kecil, return loss besar, pertukaran yang kuat dan pengulangan yang baik, dll.

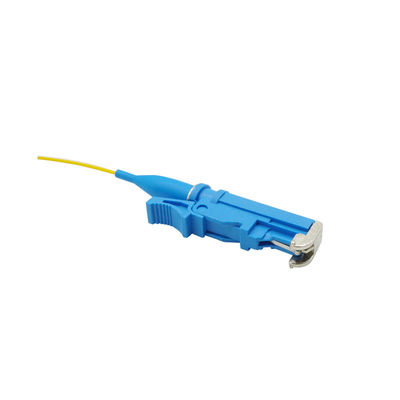

2. [Kunci serat E2000] Konektor E2000 dengan katup pegas dan perangkat pengunci dorong-tarik digunakan di kedua ujungnya.
3. Ritsleting terkunci sepenuhnya saat Anda memasukkan konektor dan katup pegas menutup secara otomatis saat Anda menariknya keluar.
4. Konektor ditandai dengan perlindungan pin dari kontaminasi dan keausan.
APLIKASI
Ini banyak digunakan dalam jaringan transmisi optik jarak jauh dan lokal, jaringan transmisi data, jaringan transmisi gambar, TV kabel dan bidang lainnya.
Spesifikasi
| Jenis serat: | OS2 9/125 mode tunggal, OM2 50/125 multi-mode, 10G OM3 50/125 multi-mode |
| Jenis Konektor | E2000-E2000,LC-E2000,SC-E2000,FC-E2000,ST-E2000 |
| Cara Polandia | UPC/UPC, APC/APC |
| Inti Serat | Simpleks/Dupleks |
| Parameter | Satuan | Modus tunggal | |
| Kerugian penyisipan | dB | UPC | APC |
| 0.3 | 0.3 | ||
| Mengembalikan kerugian | dB | 55 | 75 |
| Panjang gelombang kerja | nm | 1310/1510 | |
| dapat dipertukarkan | dB | 0.2 | 0.2 |
| frekuensi getaran | dB | 0.2 | 0.2 |
| Suhu kerja | ℃ | -40~75 | |
| Suhu penyimpanan | ℃ | -40~85 | |
| Diameter luar kabel: | nm | 3.0/2.0/0.9 | |
Kemasan
