SM 9/125 Zipcord Simplex Serat Optik Patch Cord FC APC Untuk Jaringan FTTH FTTB FTTX
Detail Produk
| Tipe: | Patchcord Serat Optik | Panjang gelombang: | 1310 / 1550nm |
|---|---|---|---|
| Jenis serat: | Singemode | Warna: | Kuning |
| Aplikasi: | FTTH FTTB Jaringan FTTX, Pusat Data | OEM: | Selamat datang |
| Menyoroti |
Kabel Patch Serat Optik Zipcord,Kabel Patch Serat Optik FTTX,kabel patch apc fc |
||
Deskripsi Produk

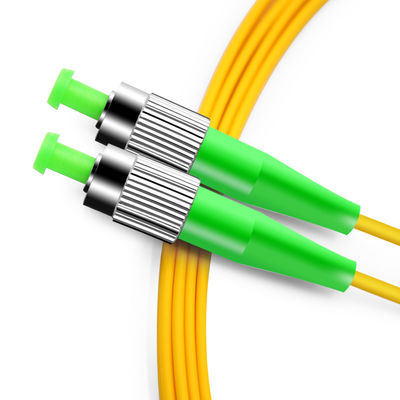

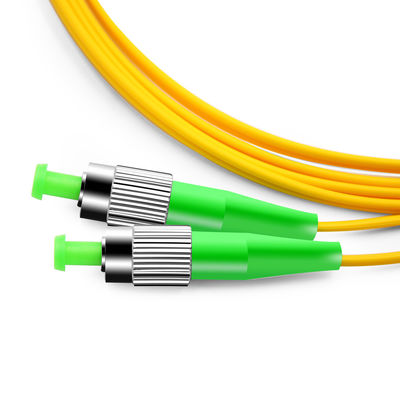

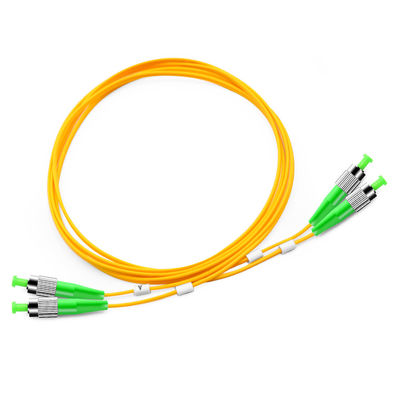

FTTH FTTB FTTX Jaringan Serat Patch Cord FC APC ke FC APC SM 9/125 Zipcord Serat Optik Patch Cord
Nomor Model:FC/APC-FC/APC-SX-SM
Tempat Asal: ShenZhen, Cina
Detail Cepat
| 1.Jenis | Kabel patch lapis baja |
| 2. Inti kabel | Simpleks, Dupleks |
| 3.Mode | mode tunggal |
| 4.Ferrule End-face | PC, UPC |
| 5. Diameter kabel | 2.0mm, 3.0mm |
| 6. Panjang kabel | 1m, 2m, 3m….disesuaikan |
Fitur
| 1.Koefisien tarik tinggi dan koefisien tegangan |
| 2.Nyaman untuk aplikasi, sangat aman |
| 3.Aplikasi tanpa merusak kabel |
| 4.Aplikasi tanpa merusak kabel |
| 5.Pemotongan biaya untuk pemeliharaan |
Aplikasi
| 1.FTTH |
| 2.Jaringan area |
| 3.Peralatan uji |
| 4.Pertahanan Nasional |
| 5.Pertahanan Nasional |
Spesifikasi
| Barang | Modus tunggal | ||
| Wajah Akhir Ferrule | PC | UPC | APC |
| Masukkan redaman at | 0.3dB | 0.3dB | 0.3dB |
| Mengembalikan kerugian | 45dB | 50dB | 55dB |
| pengulangan | 0.1dB | 0.1dB | 0.1dB |
| Suhu operasi | -20 °C~+70 °C (PVC)/-40 °C~+90 °C (LSZH/PU) | ||
| Diameter luar | 1.6mm | ||
Sedang mengemas:
Tas PE dengan label tongkat (kita bisa menambahkan logo pelanggan di label.)
