Duplex Simplex 12 Core Serat Optik Patch Cord Jumper Dengan Jaket Warna Kustom
Detail Produk
| Nomor model: | Kabel Jumper/Patch FC-MPO | Jenis serat: | SM / MM |
|---|---|---|---|
| Warna: | Disesuaikan | Kontrol kualitas: | UJI 100% |
| OEM: | Selamat datang | Bahan: | LSZH |
| Menyoroti |
12 Core Serat Optik Patch Cord,Color Jacket Serat Optik Patch Cord,Duplex Serat jumper |
||
Deskripsi Produk

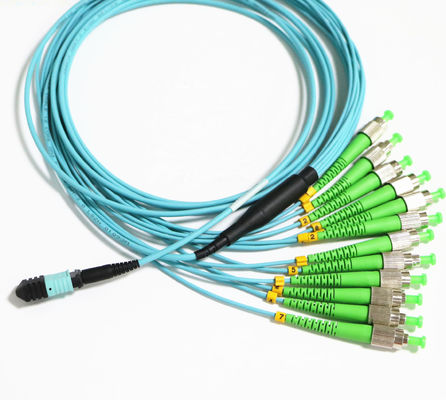

Single Mode 12 Core Jumper Serat Optik Patch Cord dengan Jaket Warna Kustom
Nomor Model:MPO-FC-SM-12F
Tempat Asal: ShenZhen, Cina
Keterangan
Kabel patch serat optik MPO digunakan dalam rakitan multi-serat tipe Pita, tidak seperti simpleks atau dupleks.Ada beberapa koneksi Seratglass dalam satu kabel patch serat optik MPO, misalnya, 4 serat, 8 serat, 12 serat, 24 serat.
Fitur
| Kehilangan refleksi tinggi dengan APC | |
| Kepadatan serat tinggi (maksimal 24 serat Multimode) | |
| Mode tunggal dan MultimodeI (Flat/Round) tersedia. | |
| Serat dalam konektor tunggal | 4,8,12,24 |
| Masukkan/Tarik konektor latvhing | |
| Pemolesan PC/UPC/APC | |
| Diameter | 0.9, 2.0, dan 3.0mm |
| Jumper serat dari mode Tunggal atau multi tersedia | |
| Simpleks atau dupleks tersedia | |
| Kabel serat optik PVC atau LSZH tersedia | |
| Kemampuan berubah dan pengulangan yang sangat baik | |
| Kekuatan tarik | 10N |
| Kisaran suhu operasi | -40 hingga 80 °C |
| Kisaran suhu penyimpanan | -40 hingga 80 °C |
| Warna kabel serat optik | Kuning (SM), Oranye (MM), dan Aqua (OM3) |
Aplikasi
| Instalasi Premis |
| FTTH,CATV,LAN,MAN,WAN,Uji & Pengukuran |
| Jaringan transmisi optik telekomunikasi |
| Penghentian Devive Aktif |
| Peralatan Uji |
Spesifikasi
| Jenis/Kinerja | SM (APC Polandia) | MM (UPC/Polandia Datar) | ||
| berdiri | Elit Rendah Rugi | berdiri | Elit Rendah Rugi | |
| Kerugian Penyisipan Maksimum | .075db | .035db | .060db | .0.35db |
| Mengembalikan kerugian | 50db | T/A | ||
| Suhu Operasional | -40~+85 | -40~+85 | ||
| Uji Panjang Gelombang | 1310mm | 850mm | ||
Sedang mengemas:
Tas PE dengan label tongkat (kita bisa menambahkan logo pelanggan di label.)
