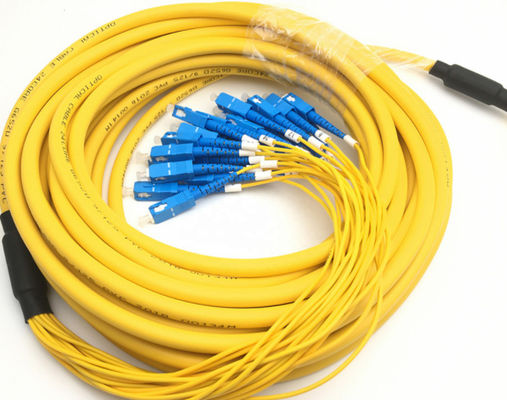

1-3m Lc Ke Lc Serat Patch Cord, Yellow Jacket Breakout Kabel Simplex Patch Cord
Detail Produk
| Nama Produk: | Kabel Patch Serat Optik | Warna: | Disesuaikan |
|---|---|---|---|
| Diameter kabel: | 0,9 / 2,0 / 3,0 mm | Jenis Ferrule: | PC / UPC / APC |
| Panjangnya: | Disesuaikan | Core: | 12 inti |
| Menyoroti |
3m Lc Ke Lc Serat Patch Cord,Breakout Kabel Simplex Patch Cord,1m Simplex Patch Cord |
||
Deskripsi Produk

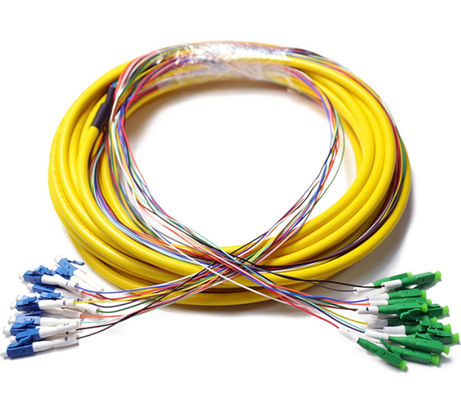

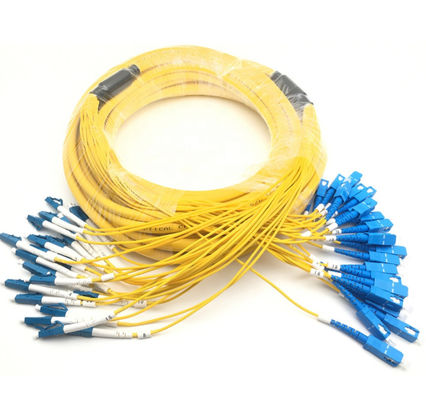

LC/APC-LC/UPC SM 12 Serat Strands Optikal Patch Cord Breakout Kabel
Nomor model:LC/APC-LC/UPC-SM-12F
Tempat Asal: ShenZhen, Cina
Keterangan
Kabel patch serat optik adalah bagian dasar untuk transmisi optik. Mereka terdiri dari kabel serat optik dan diakhiri
penyambung.Kami memiliki kapasitas dan pengalaman yang kuat untuk mendukung setiap permintaan besar.
Opsi pemesanan
1) Jenis konektor: FC, SC, LC, ST
2) Wajah akhir Ferrule: PC, UPC, APC
3) Tipe Inti: Single-mode (SM: 9/125um), Multimode (MM: 50/125um atau 62.5/125um)
4) Jumlah Kabel: Simplex, Duplex Du
5) Diameter Kabel: 3.0mm, 2.0mm, 0.9mm
6) Panjang Kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH
Fitur
| Panjang gelombang | 1310 dan 1550 |
| Warna Jaket | Jaket kuning |
| Radius tikungan | Tidak sensitif G.657.A2/B2 (7.5mm) |
| Jaket Kabel | 0.9mm PVC |
| Suhu Operasional | -4 hingga 158F (-20 hingga +70 C) |
| Inti | OS2 Bend Insensitive Serat - 9/125 Mikron |
| Kelas Serat | G.657.A2 |
| Polaritas | A(Tx) ke B(Rx) |
| Polandia | UPC ke UPC |
| Serat OS2 9/125 sesuai dengan ITU-657 A2/B2 | |
| Beberapa Ukuran Tersedia | (1m,3m,5m,10m,20m) |
Aplikasi
1. FTTH, LAN, PON & CATV Optik, Jaringan cincin lokal
2. Sistem komunikasi serat optik
3. Alat uji serat optik
4. Sensor serat optik
5.Industri dan aplikasi militer
Spesifikasi
| Parameter | Satuan | FC, SC, LC | ST,MU,MTRJ | |||
| SM | MM | SM | MM | |||
| UPC | APC | UPC | UPC | UPC | ||
| Kerugian Penyisipan | dB | 0.2 | 0.2 | |||
| Kembali Rugi | dB | 55 | 65 | 35 | 55 | 35 |
| Pengulangan | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Daya tahan | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Dapat ditukar | dB | IL≤0.2 RL≥5 | IL≤0.1 | IL≤0.1 | IL≤0.1 | |
| Kekuatan Kompresi | n | F>300 | ||||
| Rentang Hidup Operasi | Waktu | n>1000 | ||||
| Suhu Operasi | ℃ | -40~75 | ||||
| Suhu Penyimpanan | ℃ | -45~85 | ||||
| Diameter Kabel | cm | 0.9,2.0,3.0 atau ditentukan | ||||
Sedang mengemas:
Tas PE dengan label tongkat (kita bisa menambahkan logo pelanggan di label.)
