FC UPC Ke FC PC Serat Optik Patch Cord 9/125 Simplex 2.0 3.0mm Kabel Anti Penumpahan
Detail Produk
| Tipe: | Kabel Serat Optik UPC FC & Serat Patchcord | Diameter kabel: | 0,9 / 2,0 / 3,0 mm |
|---|---|---|---|
| Bahan Jaket: | PVC LZSH | Panjangnya: | Pengaturan pelanggan |
| Jenis serat: | G652D, G657A1, G657A2 | Warna: | Kuning |
| Menyoroti |
FC UPC Serat Optik Patch Cord,9/125 Serat Optik Patch Cord,9/125 kabel serat optik simpleks |
||
Deskripsi Produk

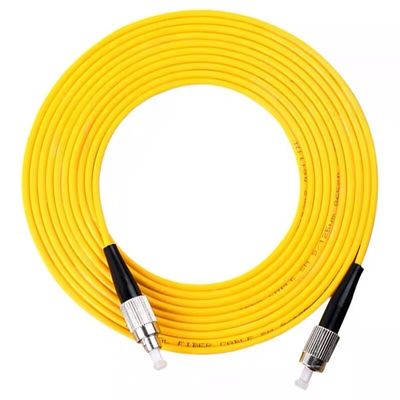

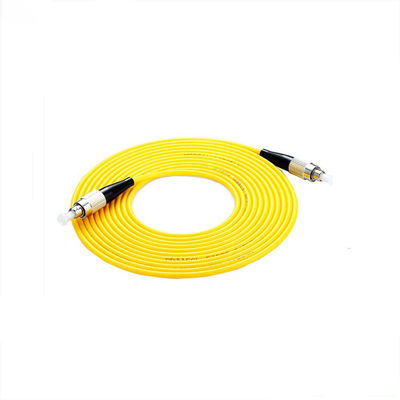

FC UPC ke FC PC kabel serat optik Mode Tunggal 9/125 Simplex 2.0 3.0mm 1M kabel patch optik FC kabel serat optik
Nomor Model: Kabel Patch SC-FC
Tempat asal:ShenZhen, Tiongkok
Keterangan
Kabel Patch Serat Optik adalah komponen yang sangat andal dengan kehilangan penyisipan dan kehilangan pengembalian yang rendah.Mereka datang dengan pilihan Anda konfigurasi kabel simpleks atau dupleks. Berbagai kabel serat patch diakhiri dengan konektor canggih dan tersedia dalam kombinasi ST, SC, LC dan MTRJ dengan jenis PC, UPC atau APC Polandia untuk memenuhi konfigurasi standar atau kustom Anda.
Spesifikasi
| Mode | SM | MM | |
| Polandia | UPC | APC | APC |
| Kerugian Penyisipan | Khas 0.2dB Maksimum 0.3dB | 0,25dB | |
| Mengembalikan kerugian | 50dB | 65dB | 35dB |
| Dapat dipertukarkan | 0.2dB | ||
| Pengulangan | 0.1dB | ||
| Daya tahan | 0.2dB (1000 kali kawin) | ||
| Kekuatan Tarik | > 10kg | ||
| Suhu | 0.2dB (-40+85 bertahan 100 jam) | ||
| Kelembaban | 0.2dB (+25+65 93 RH100 jam) | ||
Opsi pemesanan
1) Jenis konektor: FC, SC, LC, ST
2) Wajah akhir Ferrule: PC, UPC, APC
3) Tipe Inti: Single-mode (SM: 9/125um), Multimode (MM: 50/125um atau 62.5/125um)
4) Jumlah Kabel: Simplex, Duplex Du
5) Diameter Kabel: 3.0mm, 2.0mm, 0.9mm
6) Panjang Kabel: 1, 2, 3 meter atau disesuaikan
7) Jenis kabel: PVC, LSZH.
Sorotan Produk
FC UPC ke FC PC kabel serat optik Mode Tunggal 9/125 Simplex 2.0 3.0mm 1M kabel patch optik FC kabel serat optik Nomor Model: Kabel Patch SC-FC Tempat asal:ShenZhen, Tiongkok Keterangan Kabel Patch Serat Optik adalah komponen yang sangat andal dengan kehilangan penyisipan dan kehilangan pengembalian ...
