Adaptor Fc APC Ke Sc APC Tipe D Kecil, Adaptor Serat Optik Persegi ABS
Detail Produk
| Tipe: | Adaptor Serat & Konektor | bahan: | ABS |
|---|---|---|---|
| Warna: | Biru, Hijau, abu-abu | Jenis Konektor: | PC / APC |
| Kerugian penyisipan: | ≤0,2 dB | Mengembalikan kerugian: | ≥50 dB |
| Menyoroti |
Adaptor Fc Apc Ke Sc Apc,Adaptor Serat Optik ABS Tipe D Kecil,Adaptor Serat Optik Persegi ABS |
||
Deskripsi Produk

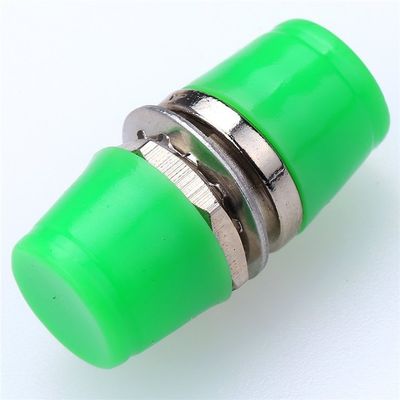

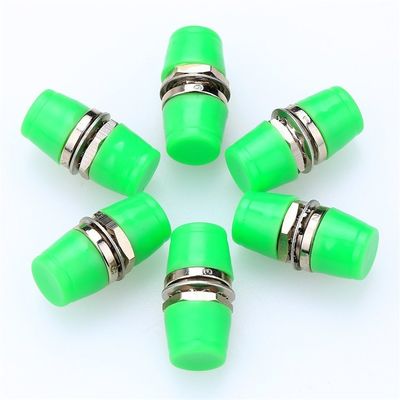

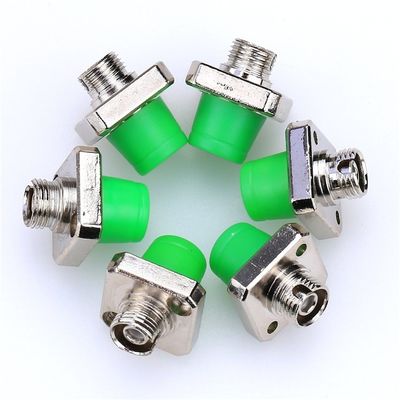

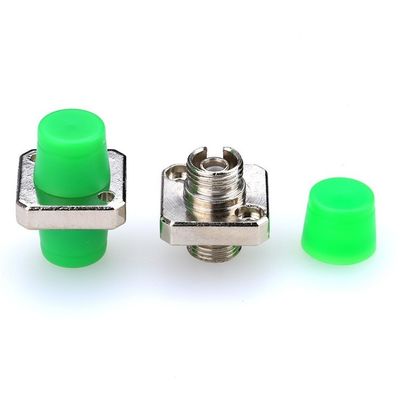

Adaptor FC optik tipe D kecil / Adaptor serat optik persegi
Model: SX-SM-FC/APC-FC/APC
Tempat Asal: Guangdong, Cina,
Keterangan
Adaptor serat optik juga disebut coupler serat optik.Ini berisi selongsong interkoneksi, yang menyatukan kedua ferrules. Ini digunakan untuk menyediakan koneksi kabel ke kabel serat. Kami menyediakan berbagai macam lengan kawin dan adaptor hibrida, termasuk Adaptor LC, Adaptor Serat Simpleks, Adaptor Serat Dupleks.
Fitur
1. Kehilangan penyisipan rendah dan kehilangan refleksi belakang
2. Penyelarasan presisi tinggi High
3. Tubuh kuningan berlapis nikel Nick
4. Gunakan dalam aplikasi Single-mode atau Multimode
5 .Pilihan bahan perumahan dan bahan lengan
6. ISO9001: 2008, kepatuhan ROHS
Aplikasi
1. Telekomunikasi Serat Optik
2. LAN (Jaringan Area Lokal)
3. FTTH (Serat To The Home)
4. Sistem CATV & CCTV
5. Sistem transmisi kecepatan tinggi
6. Penginderaan serat optik
7. Industri, Mekanik, dan Militer
Spesifikasi
| Parameter | Satuan | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Penyisipan Rugi (Khas) | dB | 0.2 | 0.2 | 0.2 | 0.2 |
| Mengembalikan kerugian | dB | 45 | 50 | 60 | 30 |
| Dapat ditukar | dB | 0.2 | |||
| Pengulangan | dB | 0.2 | |||
| Daya tahan | Waktu | >1000 | |||
| Suhu Operasional | °C | -40~75 | |||
| Suhu Penyimpanan | °C | -45~80 | |||
Pengemasan & Pengiriman
Sorotan Produk
Adaptor FC optik tipe D kecil / Adaptor serat optik persegi Model: SX-SM-FC/APC-FC/APC Tempat Asal: Guangdong, Cina, Keterangan Adaptor serat optik juga disebut coupler serat optik.Ini berisi selongsong interkoneksi, yang menyatukan kedua ferrules. Ini digunakan untuk menyediakan koneksi kabel ke ...
