IEC Standard Fc To St Serat Adapter, Coupler Kabel Serat Optik Untuk Industri Metro
Detail Produk
| Tipe: | Adaptor Serat & Konektor | Nama Produk: | FC ke ST Duplex adaptor serat perempuan |
|---|---|---|---|
| Daya tahan: | 1000 kali | Tersedia untuk: | SC-FC, SC-ST, FC-ST, SC-LC, FC-LC dan ST-LC |
| Bahan: | Paduan seng Lengan keramik presisi tinggi & Karet / APS | Daya Tahan (500 Perkawinan): | 0,1dB Maks. |
| Kekuatan penarikan (g / f): | 200 ~ 600 | Suhu penyimpanan: | -40 ~ + 85 |
| Menyoroti |
IEC Standard Fc To St Serat Adapter,IEC Standard Serat Optik Kabel coupler,Metro Industry Fc To St Serat Adapter |
||
Deskripsi Produk

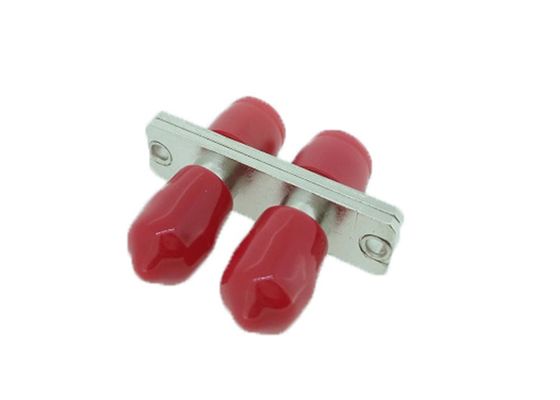

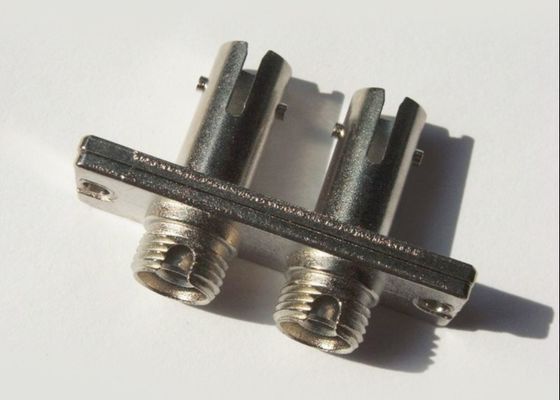

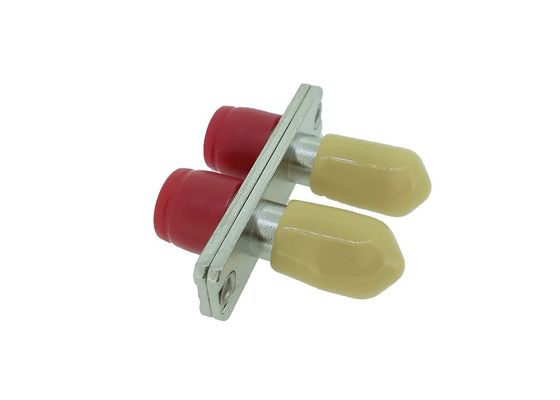

FC ke ST female ke female hybrid duplex adaptor serat optik female
Model:SM-DX-FC/UPC-ST/UPC
Tempat Asal: ShenZhen, Cina
Keterangan
FC (Perempuan) ke ST (Perempuan) jenis adaptor hibrida serat optik, Mengonversi konektor FC ke Konektor ST.Variabel antarmuka FC konversi antarmuka ST.Memberikan solusi sederhana dan andal untuk menghubungkan dua sambungan transmisi serat optik yang berbeda.
Fitur
- Koneksi presisi dengan lengan
- Konektor SM dan MM dapat digunakan secara bergantian
- Kehilangan penyisipan rendah, Kerugian pengembalian tinggi
- Pertukaran dan keandalan yang baik
- Memenuhi standar IEC dan ROHS
- Presisi tinggi dari dimensi mekanik Akurasi
Bahan
| Nama bagian | Bahan | Warna |
| Badan perumahan | Zinc Alloy | - |
| Lengan baju | Lengan keramik presisi tinggi | putih |
| Penutup debu | Karet/APS | Merah/Kuning/Hitam |
spesifikasi
| Item tes | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Kerugian Penyisipan | 0.2dB | 0.2dB | 0.2dB |
| Mengembalikan kerugian | 50 dB | 60 dB | 35 dB |
| Daya Tahan (500 Kawin) | 0.1dB Maks. | ||
| Kekuatan penarikan (g / f) | 200~600 | ||
| Suhu Penyimpanan | -40~+85 | ||
Tersedia untuk Simpleks SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125
Aplikasi
- Panel patch, ODF dan koneksi optik lainnya.
- Demarkasi jaringan optik dan titik pemantauan.
Pengemasan & Pelabelan
Sorotan Produk
FC ke ST female ke female hybrid duplex adaptor serat optik female Model:SM-DX-FC/UPC-ST/UPC Tempat Asal: ShenZhen, Cina Keterangan FC (Perempuan) ke ST (Perempuan) jenis adaptor hibrida serat optik, Mengonversi konektor FC ke Konektor ST.Variabel antarmuka FC konversi antarmuka ST.Memberikan solusi ...
