105-1000um MM Single Mode Serat Patch Cord Penyambungs SMA905 Anti Kelelahan
Detail Produk
| Nama Produk: | Konektor Fiber Optik | Model: | SMA 905 MM |
|---|---|---|---|
| Sertifikasi: | CE RoHS SGS | Aplikasi: | Militer, medis |
| Bahan: | Logam dan plastik | Diameter kabel yang sesuai: | ter: 0.9mm/2.0mm/3.0mm, atau disesuaikan |
| Menyoroti |
1000um MM Fiber Patch Cord Connectors,SMA905 Fiber Patch Cord Connectors,105um konektor serat mode tunggal |
||
Deskripsi Produk

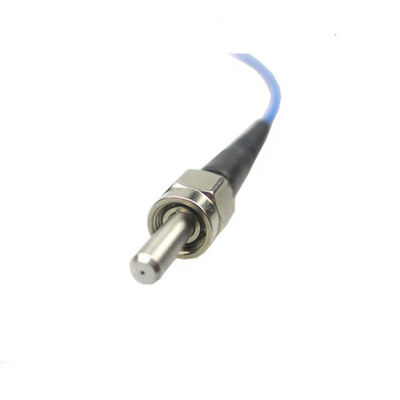

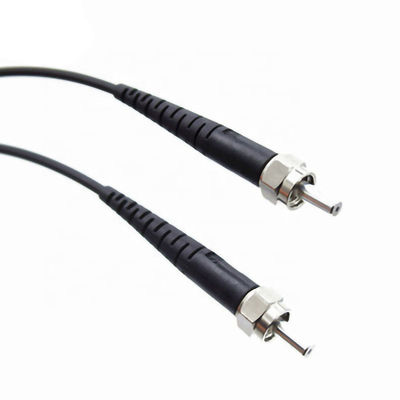

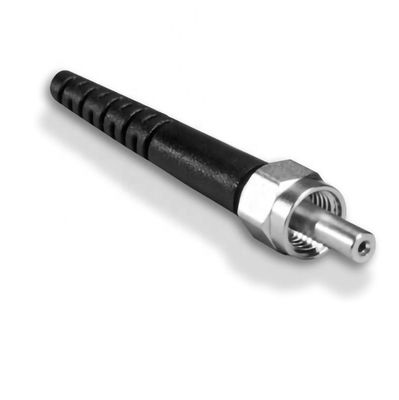

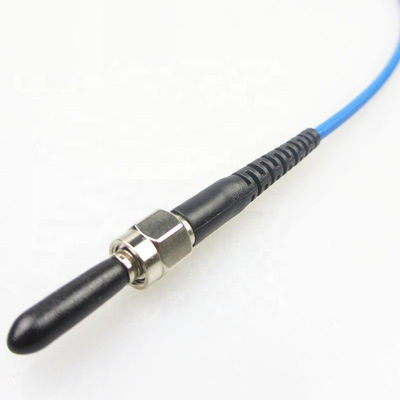

105~1000um MM Simplex 3.0mm SMA905 Laser SMA 905 Konektor Serat Optik Konektor
Model: SMA 905
Tempat Asal: ShenZhen, Cina
Keterangan
Fitur
Cahaya yang baik melalui tingkat
Sangat baik anti kelelahan
Energi optik diameter inti besar
Daya tarik
Aplikasi
Aplikasi pengukuran optik
Peralatan deteksi optik medis
Deteksi keamanan pangan
Otomatisasi pabrik
Mobil, pesawat, dan aplikasi militer
spesifikasi
| Mode | SM | MM | |
| Polandia | UPC | APC | PC |
| Kerugian Penyisipan | Khas 0.2dB Maksimum 0.3dB | 0,25dB | |
| Mengembalikan kerugian | 50dB | 65dB | 35dB |
| Dapat dipertukarkan | 0.2dB | ||
| Pengulangan | 0.1dB | ||
| Daya tahan | 0.2dB (1000 kali kawin) | ||
| Kekuatan Tarik | > 10kg | ||
| Suhu | 0.2dB (-40+85 bertahan 100 jam) | ||
| Kelembaban | 0.2dB (+25+65 93 RH100 jam) | ||
