LC/PC Simplex Serat Patch Cord Penyambungs High Return Loss Dengan 0.9/2.0/3.0mm Boot
Detail Produk
| Jenis: | Konektor Serat Optik | Jenis Konektor: | LC/UPC, PC |
|---|---|---|---|
| Aplikasi: | Jaringan FTTH FTTB FTTX | Warna: | bule |
| Penyambung: | LC | Sertifikasi: | CE RoHS SGS |
| Menyoroti |
Konektor Kabel Patch Serat Simplex,Konektor Kabel Patch Serat 0.9mm,konektor serat optik lc Simplex |
||
Deskripsi Produk

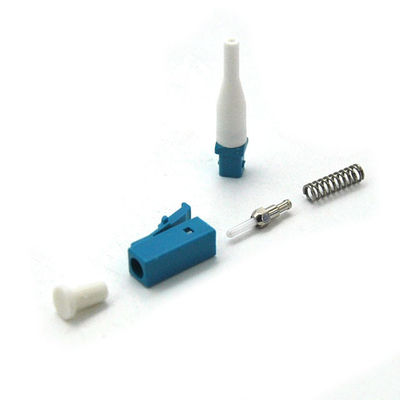

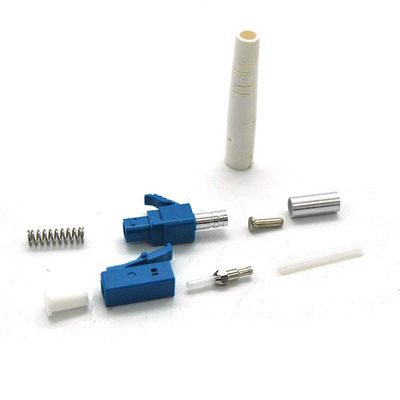

LC/PC Singlemode Simplex Fiber Optic Connector dengan boot 0.9/2.0/3.0mm
Model: SX-SM-LC-UPC
Tempat Asal: ShenZhen, Cina
Keterangan

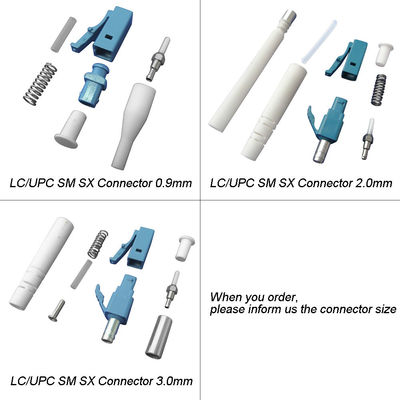

Konektor serat tersedia dengan berbagai pilihan, termasuk simpleks, dupleks, multimode, mode tunggal, dan ukuran boot 3mm, 2mm, atau 900µm.
spesifikasi
| Parameter | Satuan | FC, SC, LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| komputer | UPC | APC | komputer | komputer | UPC | komputer | komputer | UPC | komputer | ||
| Kerugian penyisipan | dB | 0.3 | 0.2 | 0.3 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.2 | 0.2 |
| Mengembalikan kerugian | dB | 45 | 50 | 60 | 30 | 50 | 50 | 30 | 45 | 50 | 35 |
| Panjang Gelombang Operasi | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Dapat ditukar | dB | 0.2 | 0.2 | 0.2 | |||||||
| Getaran | dB | 0.2 | 0.2 | 0.2 | |||||||
| Suhu Operasional | ℃. | -40～+75 | -40～+75 | -40～+75 | |||||||
| Suhu penyimpanan | ℃. | -40～+85 | -45～+85 | -45～+85 | |||||||
| Diameter kabel: | mm | 3.0,φ2.0,φ0.9 | 3.0,φ2.0,φ0.9 | 3.0,φ2.0,φ0.9 |
|||||||
Fitur
1. Ferrule keramik zirkonium dioksida berkualitas tinggi.
2. Teknologi dan fasilitas produksi yang matang, pertukaran yang stabil dan pengulangan.
3. Panjang, diameter luar, permukaan ujung ferrule, dan adaptor dapat disesuaikan.
4. Kerugian penyisipan rendah, kerugian pengembalian tinggi
5. Koneksi padat tinggi, mudah dioperasikan
6. Kredibilitas dan stabilitas tinggi
7. Baik dalam pengulangan dan pertukaran
8. Tes 100% sebelum pengiriman
Langkah Pemasangan Konektor
Aplikasi
Sistem Telekomunikasi
Akses Serat Optik
LAN
Transmisi data serat
Jaringan CATV
