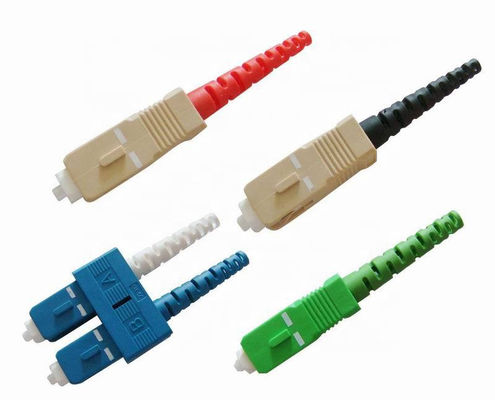

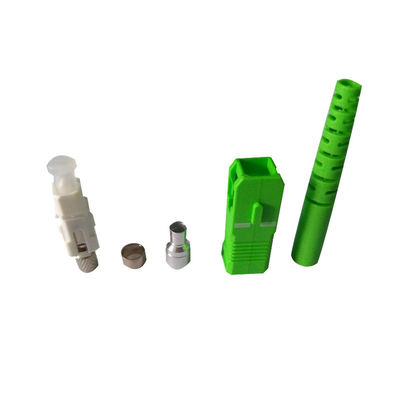

Konektor Kabel Serat Patch Multimode Multimedia Konektor Apc Sc
Detail Produk
| Tipe: | konektor serat optik | Suhu Operasional: | -40 ℃ ~ 75 ℃ |
|---|---|---|---|
| Aplikasi: | FTTH FTTB Jaringan FTTX, Pusat data, CATV | Bahan: | PBT |
| Kerugian penyisipan: | 0.2dB(SM), 0.3dB(MM) | Mengembalikan kerugian: | PC≥45dB, UPC≥50dB, APC≥60dB |
| Menyoroti |
Konektor Kabel Patch Serat Multimedia,Konektor Kabel Patch Serat Multimode,konektor apc multimode |
||
Deskripsi Produk
Foptik ibreaku menipunsektor sc apc untuk kuncir patchcord
Model: SX-SM-SC-SEBUAHPC
Tempat Asal: ShenZhen, Cina
1. Aplikasi
CATV
Jaringan Telekomunikasi
Metro
Multimedia
Pengolahan data
Instalasi premis
GigabitEthernet
2. Fitur
Kehilangan penyisipan rendah dan kehilangan refleksi belakang
Permukaan ujung ferrule pra-kubah
Kunci anti-rotasi presisi
Tubuh kuningan berlapis nikel
Sepatu bot gaya Telcordia
Keramik ferrule mengambang bebas
3. spesifikasi
| Mode Tunggal | Multimode | |
| Kerugian Penyisipan | <0,10 dB | <0.15dB |
| Mengembalikan kerugian | ≥55dB (APC≥65dB) | ≥35dB |
| daya tahan | <0.1dB perubahan khas, 500 kawin | |
| Suhu Operasional | -40℃~75℃ | -40℃~75℃ |
| Ukuran Lubang Ferrule | 125.0+1/-0um, Konsentrisitas≤1um | 125um,Konsentrisitas≤3um |
| 125.3 + 1/-0um, Konsentrisitas≤1um | 127um, Konsentrisitas≤3um | |
| 125.5+1/-0um, Konsentrisitas1um | 128um, Konsentrisitas≤3um | |
| 126.0+1/-0um, Konsentrisitas≤1um |
4. Pilihan Pemesanan:
FC/PC SM one-piece, multi-piece, 3mm atau 2mm boot
FC/PC SM one-piece, multi-piece, boot 900um
FC/APC SM one-piece, multi-piece, 3mm, 2mm atau 900um boot (kerucut)
FC/APC SM one-piece, multi-piece, 3mm, 2mm atau 900um boot (langkah)
FC/APC SM one-piece, multi-piece, 3mm, 2mm atau 901um boot (conical pra-sudut)
FC/PC MM one-piece, multi-piece, 3mm atau 2mm boot
FC/PC MM one-piece, multi-piece, boot 900um
