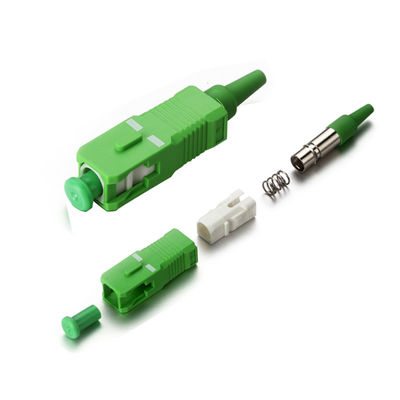

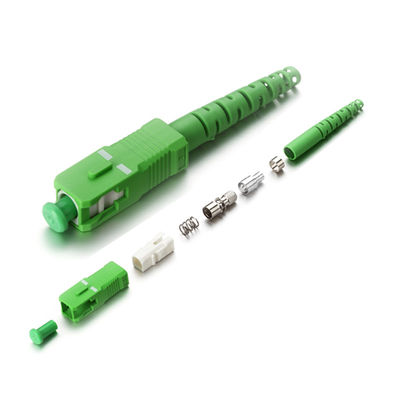

Kit Konektor Serat Optik 1310/1550nm Kompatibilitas Kuat Konektor Simpleks PBT APC Sc
Detail Produk
| Tipe: | konektor serat optik | Suhu Operasional: | -40 ℃ ~ 75 ℃ |
|---|---|---|---|
| Aplikasi: | FTTH FTTB Jaringan FTTX, Pusat data, CATV | Bahan: | PBT |
| Kerugian penyisipan: | 0.2dB(SM), 0.3dB(MM) | Mengembalikan kerugian: | PC≥45dB, UPC≥50dB, APC≥60dB |
| Menyoroti |
Kit Konektor Serat Optik 1310nm,Konektor Simpleks Sc 1310nm,Konektor Simpleks PBT APC Sc |
||
Deskripsi Produk
Fiber HAIkit konektor ptic SC APC 0.9 2.0 3.0mm Model tunggal Simplex
Model: SX-SM-SC-UPC
Tempat Asal: ShenZhen, Cina
Keterangan
Produk serat Seri SC memiliki struktur dorong-tarik yang nyaman dan banyak digunakan di semua jenis solusi jaringan FTTx optik.
Fitur
● Kehilangan penyisipan rendah
● Pengulangan yang baik
● Kompatibilitas yang baik
● Jumlah sisipan minimal 500 kali
● Semua bagian sesuai dengan RoHs/REACH
● kompatibel dengan standar IEC
● Peringkat Api UL 94V-0
● Warna boot dapat disesuaikan
spesifikasi
| Parameter | Satuan | FC, SC, LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Kerugian penyisipan | dB | 0.3 | 0.2 | 0.3 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.2 | 0.2 |
| Mengembalikan kerugian | dB | 45 | 50 | 60 | 30 | 50 | 50 | 30 | 45 | 50 | 35 |
| Panjang Gelombang Operasi | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Dapat ditukar | dB | 0.2 | 0.2 | 0.2 | |||||||
| Getaran | dB | 0.2 | 0.2 | 0.2 | |||||||
| Suhu Operasional | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Suhu penyimpanan | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Diameter kabel: | mm | 3.0,φ2.0,φ0.9 | 3.0,φ2.0,φ0.9 | 3.0,φ2.0,φ0.9 | |||||||
Aplikasi
Konektor ini cocok untuk kabel 900μm, 2mm, dan 3mm.Konektor dibuat dengan presisi dan diproduksi sesuai spesifikasi yang diminta.Kombinasi ferrule keramik dengan housing kuningan berlapis nikel presisi memberikan kinerja mekanis dan optik yang konsisten dan jangka panjang.
