Adaptor Serat Optik Flange Tipe SC Simplex APC Kehilangan Penyisipan Rendah
Detail Produk
| Nama Produk: | Adaptor Serat Optik Mode Tunggal SC/APC | Warna: | hijau |
|---|---|---|---|
| Tipe: | Mode tunggal | Kerugian penyisipan: | 0.2dB (SM&MM) |
| Aplikasi: | FTTH FTTB FTTX Network | Suhu Operasional: | -40 hingga +80 derajat |
| Daya tahan: | >1000 kali | Tahan tarik (g): | 200-600 |
| Menyoroti |
Adaptor Serat Optik Flange SC,Adaptor Serat Optik APC,Adaptor sc apc Loss Penyisipan Rendah |
||
Deskripsi Produk

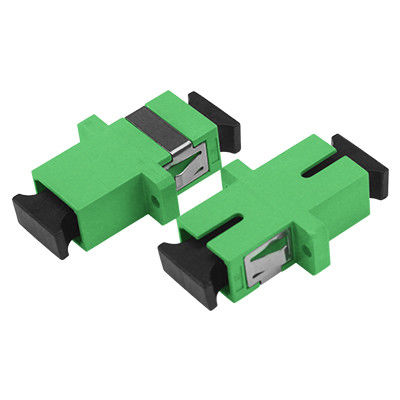

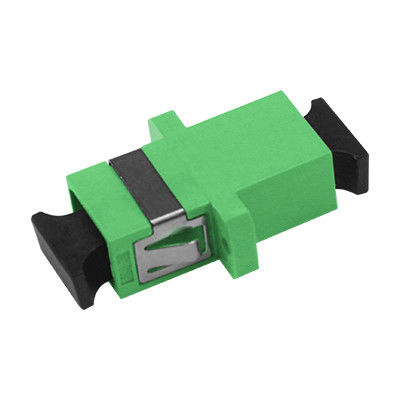

Optik flange adapter coupler SC tipe simplex adaptor serat optik APC
Model: SM-SX-SC/APC-SC/APC
Tempat asal:ShenZhen, Tiongkok
Rincian Cepat:
● Sesuai dengan standar ANSL, Bellcore, TIA/EIA, IEC
● Dengan dimensi presisi tinggi
● Rumah keramik atau perunggu
● Penyisipan rendah (<0.2dB), kehilangan pengembalian tinggi (≥50dB)
● Perubahan lebih dari seribu, pengulangan kurang dari 0.2dB
Keterangan
Adaptor serat optik digunakan untuk mengkalibrasi dua konektor serat optik. Jenis adaptor ini adalah FC (PC / APC), LC (simpleks atau dupleks), ST, MU, MTRJ, E-2000 dan seterusnya.
spesifikasi
| Jenis | Kerugian penyisipan (db) | Tahan tarik (g) | Sisipan dan waktu tarik | Suhu (℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| NS | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
Aplikasi
Telekomunikasi, akses jaringan
Serat optik CATV LAN dan Jaringan Akses
Terminal perangkat multimedia
Pengujian dan perangkat rumah sakit
Aplikasi industri dan militer lainnya
Sorotan Produk
Optik flange adapter coupler SC tipe simplex adaptor serat optik APC Model: SM-SX-SC/APC-SC/APC Tempat asal:ShenZhen, Tiongkok Rincian Cepat: ● Sesuai dengan standar ANSL, Bellcore, TIA/EIA, IEC ● Dengan dimensi presisi tinggi ● Rumah keramik atau perunggu ● Penyisipan rendah (
