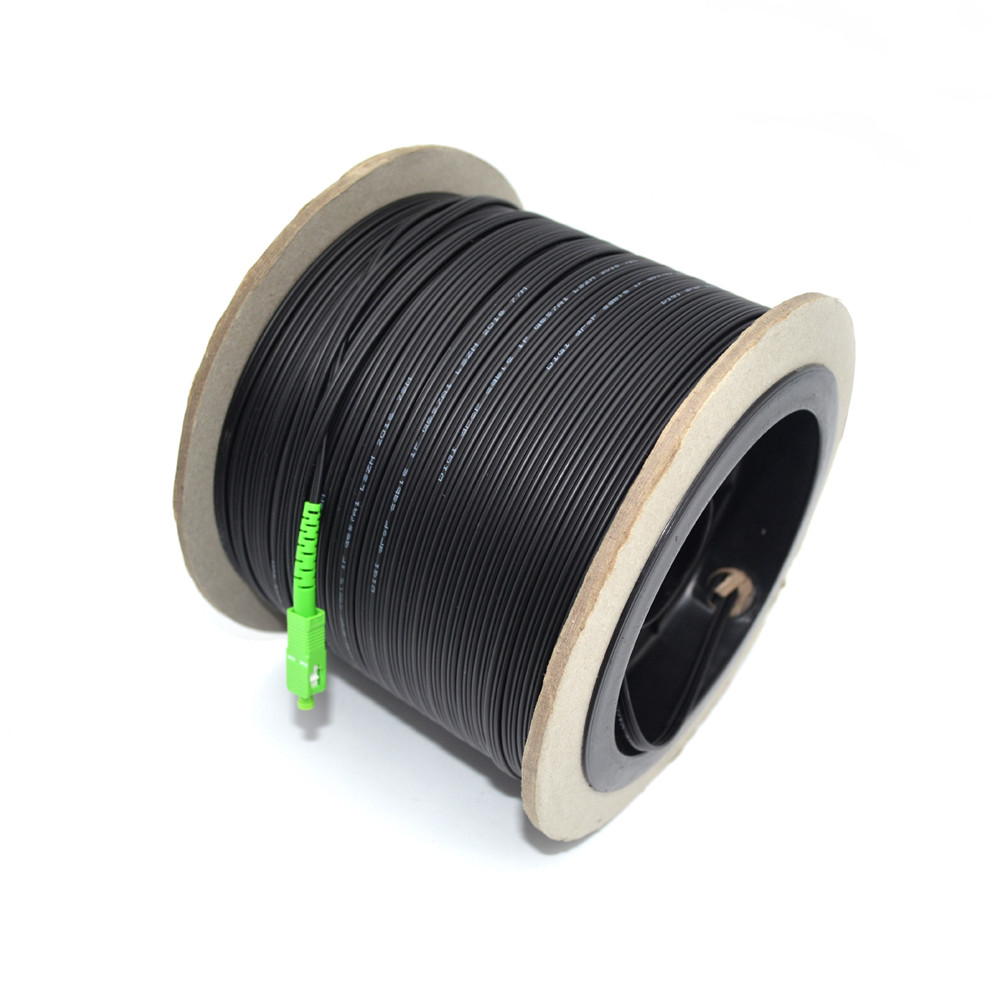

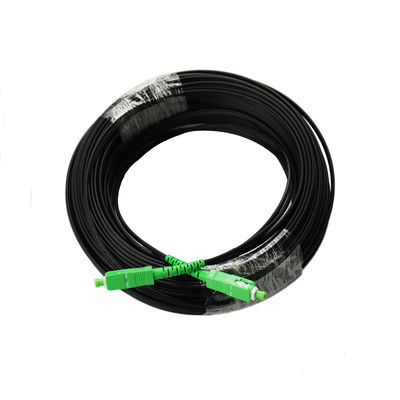

FTTH Drop Serat Optik Patch Cord
Detail Produk
| Nama Produk: | SC / APC Serat Optik Drop Kabel Patch Cord | Warna jaket: | Hitam atau putih |
|---|---|---|---|
| Dimensi Kabel: | (5.1 ± 0.1) mmX (3.0 ± 0.1) mm | Bahan Jaket: | LSZH |
| Anggota Kekuatan: | FRP & Kawat Baja | Kontrol kualitas: | Tes 100% sebelum pengiriman |
| Menyoroti |
Kabel Patch Serat Optik 80m,Kabel Patch Serat Optik FTTH,kabel serat optik drop ftth 1 Core |
||
Deskripsi Produk
Kabel Serat Optik FTTH Pigtail Dan Kabel Patch G657A 1 Core Ftth Drop Kabel SC / APC 80m
Nomor Model:SC/APC-80m-SX-SM
Tempat Asal: Guangdong, Cina,
Keterangan
Kuncir kabel FTTH Drop digunakan untuk menghubungkan peralatan dan komponen dalam jaringan serat optik.Mereka dengan berbagai jenis jenis konektor serat optik.Jenis Pigtail serat optik diklasifikasikan berdasarkan jenis konektor serat optik.Misalnya, kami menamai kuncir serat optik SC karena kabel ini dengan konektor serat optik SC.Ada pigail Serat tipe PC, UPC, APC.Mereka berbeda karena polesan konektor serat.
Aplikasi
1. Bingkai Distribusi Optik
2. Jaringan Komputer
3. Sistem Komunikasi Serat Optik
4. Jaringan Akses Optik
5. Jaringan Area Lokal
6. Sensor Serat Optik
7. Komunikasi Data Serat Optik
8. Televisi Kabel Serat Optik
9. Alat Uji Serat Optik
10.Menghubungkan Antara Kabel Optik Backbone dan RX
11. Akses kabel
Spesifikasi
| Barang | Spesifikasi | |
| Mode tunggal | Multi-mode | |
| Mengembalikan kerugian | UPC≥50dB, APC≥60dB | 40dB |
| Kerugian penyisipan | 0.3dB | |
| Pengulangan | 0.1dB | |
| Pertukaran | 0.2dB | |
| Jumlah Serat Serat | 1/2 Inti | |
| Sisipkan & Gambar Waktu | 1000 | |
| Suhu Operasional | -40~+85 | |
Kemasan
